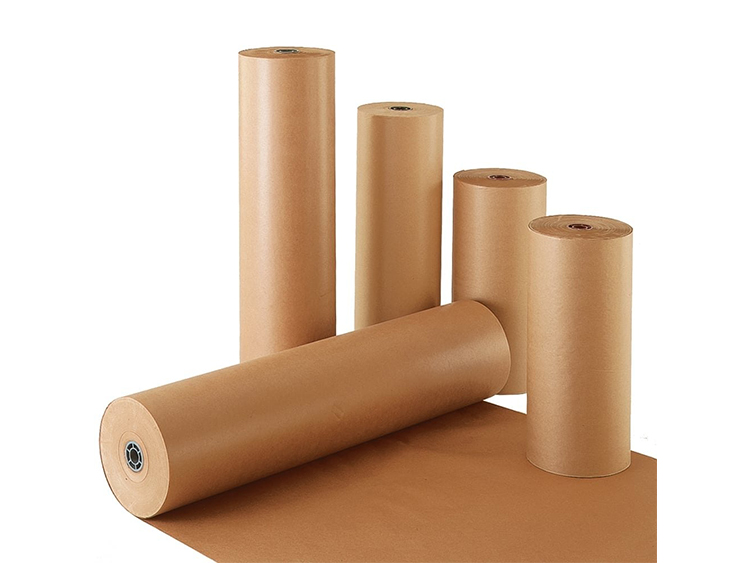

Electrical Grade Press Paper
Electrical grade press paper — also known as transformer kraft insulation paper or electrical insulating paper — is the primary turn-to-turn and layer-to-layer insulation material inside every oil-filled power and distribution transformer. It is a dense, calendered cellulose sheet manufactured from high-purity sulphate-process wood pulp, designed to be fully oil impregnated as part of the oil-paper insulation system that defines all oil-filled transformer design.
ACC Insulations manufactures high-quality electrical grade press paper in Nashik, Maharashtra, supplying OEM transformer manufacturers across India. Our cellulose insulation paper complies with IEC 60554 and IS 1576, with custom thickness, roll widths, and slit sizes available to your transformer design specification.
What Is Electrical Grade Press Paper?
Press paper starts as a high-purity cellulose pulp sheet — the same fundamental raw material as electrical grade crepe paper — but instead of being crinkled, it is passed through precision steel calendar rollers that compress the sheet to a controlled, uniform thickness. This calendering process increases the paper's density, smooths its surface, and ensures consistent dielectric and mechanical properties across every metre of the roll.
How Electrical Grade Press Paper Is Manufactured
The quality of press paper is determined entirely by the precision of each manufacturing stage. Understanding the process explains why consistent quality is critical — and why every stage is controlled to meet IEC 60554 requirements.
Raw Material Selection — High-Purity Cellulose Pulp
Only sulphate-process (kraft) cellulose pulp with verified low ionic impurity levels is used as the starting material. Ionic purity is critical — impurities in the cellulose dissolve into the transformer oil over decades of service, degrading oil quality and shortening transformer life. Low ash content (< 1.0%) is mandatory.
Sheet Formation — Uniform Fibre Distribution
The cellulose pulp is dispersed in water and formed into a uniform sheet on a forming wire. Fibre distribution must be consistent across the full sheet width — uneven formation creates localised thin spots with lower dielectric strength, which become sites for partial discharge initiation inside the transformer.
Drying — Moisture Removal Under Controlled Conditions
The wet cellulose sheet is dried under precisely controlled temperature conditions. Moisture content at the time of manufacture is controlled to below 8%. This is critical because moisture in cellulose paper dramatically reduces its dielectric strength — even 3–4% moisture can halve the effective dielectric performance of the paper before it is oil impregnated in the transformer.
Calendering — Precision Thickness Control
The dried sheet is passed through precision steel calendar rollers under controlled pressure to reach the target thickness within ±5% tolerance. Calendering compresses the cellulose fibres, increases density, creates a smooth surface for oil penetration, and produces the uniform mechanical and dielectric properties that transformer design engineers rely on in their insulation calculations.
Slitting & Rewinding — Custom Roll Dimensions
Finished master reels are slit to customer-specified widths and rewound to the required roll diameter and inner core size for direct use in transformer winding machines. Slit widths correspond to the conductor width in the winding, ensuring clean, consistent paper overhang on each turn.
Quality Testing — Batch Verification to IEC 60554
Every production batch is tested for dielectric breakdown strength (dry), tensile strength in both machine direction and cross direction, moisture content, ash content, and grammage (g/m²). Only batches meeting IEC 60554 specifications are dispatched. Batch test certificates are available on request.
Press Paper vs Crepe Paper — Which Do You Need?
Both papers are cellulose-based, oil-impregnatable, and used in every oil-filled transformer. But they serve completely different roles. Choosing the wrong one causes insulation failure.
Electrical Grade Press Paper
Flat, dense, dimensionally stable sheet with very low elongation. Applied wherever the conductor surface is flat and the insulation layer must be uniform in thickness.
- Flat surface — applied to flat conductors and layers
- Low elongation (< 2%) — holds its shape under tension
- High density — maximum dielectric strength per mm
- Turn-to-turn insulation inside winding slots
- Layer insulation between winding layers
- Interleaving between winding sections
- Available in flat rolls and cut sheets
Electrical Grade Crepe Paper
Mechanically crinkled paper with 10–30% stretchability. Wraps around curves, bends, and irregular shapes without tearing or leaving gaps in the insulation layer.
- Crinkled surface — stretchy and flexible
- 10–30% elongation — conforms to any shape
- Lower density than press paper
- Lead wire insulation at winding exits
- Conductor wrapping at bends and transitions
- Tap changer connections and bus bars
- Available as flat rolls and pre-formed tubes
In practice, both papers are always used together. Every oil-filled transformer uses press paper for the winding layers and crepe paper for the leads and connections. They are not interchangeable — attempting to use flat press paper on a lead wire bend causes tearing and insulation voids; attempting to use crepe paper for layer insulation gives uncontrolled thickness variation. Explore our Electrical Grade Crepe Paper →
How Oil-Impregnated Press Paper Works Inside a Transformer
The oil-paper insulation system is the foundation of all oil-filled transformer design. Understanding why it works so well — and why paper quality is critical — helps transformer engineers select the right grade for their design.
Winding Assembly
Press paper is wound between conductor turns and between winding layers during transformer assembly. The paper carries mechanical forces between the winding conductors while providing initial insulation during the dry-wound state.
Vacuum Drying
The assembled transformer is placed in a vacuum oven. Heat and low pressure drive out residual moisture from the cellulose paper — reducing paper moisture content to below 0.5%. Moisture destroys dielectric strength; removing it is mandatory before oil filling.
Oil Impregnation
Dry, degassed transformer oil is introduced under vacuum. Oil fills every microscopic pore in the now-dry cellulose paper, completely replacing air. The oil-saturated paper achieves dielectric strength ≥ 12 kV/mm — twice its dry value — because oil eliminates all air voids where partial discharge would initiate.
25–30 Year Life
The oil-paper composite dielectric ages slowly through thermal oxidation at the transformer's operating temperature. Quality press paper with low ash content preserves oil quality across decades. Paper with high impurity levels accelerates oil degradation and reduces service life.
Why ash content (< 1.0%) is the most important press paper quality parameter: Ionic impurities in the cellulose paper dissolve into transformer oil over the service life, increasing oil conductivity and reducing dielectric strength. A transformer filled with high-ash-content paper may need oil replacement in 10–15 years. The same transformer filled with low-ash paper can maintain oil quality for 25–30 years without intervention. ACC Insulations controls ash content below 1.0% in all grades.
Product Specifications
| Electrical Grade Press Paper — Technical Specifications | |
|---|---|
| Base Material | High-purity sulphate-process cellulose (electrical-grade kraft) |
| Thickness Range | 0.05 mm to 1.0 mm (standard grades) |
| Dielectric Strength (dry) | ≥ 6 kV/mm |
| Dielectric Strength (oil impregnated) | ≥ 12 kV/mm |
| Elongation (machine direction) | < 2% — dimensionally stable under tension |
| Moisture Content at manufacture | < 8% (controlled throughout production) |
| Ash Content | < 1.0% — protects transformer oil quality |
| Colour | Natural Brown |
| Available Forms | Rolls (standard & custom slit widths), flat cut sheets |
| Standards | IEC 60554, IS 1576 |
≥ 12 kV/mm Dielectric Strength
Full Oil Impregnation
Low Ash < 1.0%
IEC 60554 Compliant
Key Properties of Electrical Grade Press Paper
- High dielectric strength (≥ 12 kV/mm oil impregnated) — provides reliable turn-to-turn and layer-to-layer insulation across the full rated voltage of the transformer. Dry dielectric strength ≥ 6 kV/mm ensures performance even before oil impregnation
- Excellent mechanical strength in both directions — sufficient tensile strength to withstand the mechanical stresses of winding machine tension and the electromagnetic forces on winding conductors under fault current conditions
- Uniform thickness and density — precision calendering ensures consistent thickness within ±5% tolerance across every metre, giving transformer designers predictable insulation build-up in their winding calculations
- High oil absorption and retention — the open cellulose fibre structure absorbs transformer oil rapidly and completely during vacuum drying, eliminating oil voids that would otherwise become partial discharge sites
- Low ash content (< 1.0%) — minimises ionic contamination of transformer oil across the 25–30 year service life, maintaining oil dielectric quality without premature oil replacement
- Thermal stability at Class A (105°C) — maintains mechanical and dielectric properties through continuous thermal cycling at transformer operating temperatures, including short-duration overload conditions
- Low elongation (< 2%) — holds its dimensions under winding machine tension, delivering consistent layer thickness and accurate transformer geometry
Applications of Electrical Grade Press Paper
Electrical grade kraft insulation paper is used wherever a flat, uniform insulation layer is required between conductors or between winding sections in oil-filled electrical equipment:
- Transformer winding insulation (turn-to-turn) — the most critical application. One or more layers of press paper are wound between each turn of the conductor to prevent turn-to-turn voltage breakdown, which is the most common mode of winding failure in power transformers
- Layer insulation — thicker press paper sheets placed between each winding layer to provide the inter-layer voltage insulation required by the transformer's BIL (Basic Insulation Level) and rated voltage class
- Interleaving insulation — flat sheets interleaved between winding sections to prevent inter-section voltage breakdown in multi-section winding designs
- HV cable insulation — wound onto high-voltage cable conductors as the primary insulation layer in oil-impregnated paper (OIP) cables and cable terminations
- Power and distribution transformers (11 kV to 400 kV) — the core application, across all voltage classes from distribution (11 kV) through EHV (400 kV) transformer designs
- Instrument transformers (CT and VT) — winding insulation in current transformers and voltage transformers for metering and protection applications
- Power capacitor dielectric — capacitor-grade press paper used as the dielectric medium in oil-impregnated power capacitors for reactive power compensation
Why Press Paper Quality Determines Transformer Life
The quality of electrical grade press paper directly determines how long a transformer operates safely — and how soon it fails. In an oil-filled transformer, the paper insulation is the limiting factor in service life, not the copper or the iron. Here is why:
- Partial discharge prevention — any void or imperfection in the paper insulation becomes a site for partial discharge (corona), which erodes the cellulose fibres over time. Consistent, high-density paper with no formation defects eliminates void formation in the oil-paper insulation system
- Thermal ageing rate — cellulose paper undergoes thermal ageing at the transformer's operating temperature. The Montsinger rule states that paper insulation life halves for every 6–8°C rise in operating temperature above the rated class. High-purity paper ages more slowly because fewer impurities catalyse the degradation reaction
- Mechanical withstand under short circuits — during external fault conditions, transformer windings experience very high electromagnetic forces. Paper insulation must maintain its mechanical integrity under these impulse loads without cracking or delaminating, which would create dielectric failure paths
- Oil quality protection — low-ash-content paper protects the transformer oil from ionic contamination across decades of service, avoiding the cost and downtime of premature oil replacement or transformer rewinding
Compliance and Standards
- IEC 60554 — Cellulosic papers for electrical purposes: the primary international standard specifying test methods and performance requirements for electrical insulation papers including press paper grades
- IS 1576 — Indian Standard for electrical insulation papers and boards, covering equivalent domestic test and performance requirements
- IEC 60076-3 — Referenced for transformer insulation level requirements that determine the required paper dielectric strength in each transformer design
- OEM transformer manufacturer design specifications accepted — we manufacture to your specific voltage class and dimensional requirements
Advantages of Choosing ACC Insulations
- Consistent quality across every batch — automated process controls, not just sampling, ensure every roll meets IEC 60554 parameters
- Custom sizes and formats — any thickness (0.05–1.0 mm), any roll width, and flat cut sheets to your drawing dimensions
- Reliable supply for OEM production schedules — consistent lead times to keep your transformer assembly line running
- Technical support — guidance on paper grade selection, thickness specification, and insulation build-up calculation for your transformer design
- Competitive pricing — established since 1994 with direct supplier relationships that support volume production at consistent cost
Industries Served
- Power transformer manufacturing (11 kV to 400 kV and above)
- Distribution transformer manufacturing
- Instrument transformer manufacturing (CT and VT)
- Power capacitor manufacturing
- High-voltage cable manufacturing and termination
- Electrical equipment manufacturing and industrial power systems
Engineering Tools Suite
Calculate precise dielectric margins, insulation build-up thickness, and paper grade requirements for your transformer winding design using our interactive tools.
Frequently Asked Questions
Electrical grade press paper is used as the primary winding insulation material in oil-filled power and distribution transformers. It is applied as turn-to-turn insulation, layer insulation between winding layers, and interleaving insulation between winding sections. It is also used for conductor wrapping in HV cables and as the dielectric medium in oil-impregnated power capacitors. The paper's key advantage is its ability to be fully oil impregnated, creating the oil-paper composite insulation system that underpins all oil-filled transformer design.
Electrical grade press paper is flat and dense with low elongation (<2%) — used for uniform layer and turn insulation in transformer windings where surfaces are straight and flat. Electrical grade crepe paper is mechanically crinkled with 10–30% stretchability — used wherever flat paper cannot conform to the shape, such as lead wire insulation, bus bar wrapping, and tap changer connections. Both papers are cellulose-based, oil impregnatable, and used together in every oil-filled transformer — they are not interchangeable for each other's roles.
Yes. Electrical grade press paper is specifically manufactured for oil impregnation. During the transformer vacuum drying and oil filling process, transformer oil fills every pore of the cellulose paper, raising its dielectric strength from approximately 6 kV/mm dry to 12 kV/mm or higher when fully oil impregnated. The oil-paper composite insulation system formed is the foundation of all oil-filled transformer design and provides reliable insulation performance across the transformer's 25–30 year service life.
Electrical grade press paper from ACC Insulations complies with IEC 60554 (cellulosic papers for electrical purposes) and IS 1576 (Indian Standard for electrical insulation papers). We can also manufacture to individual OEM transformer design specifications. Batch test certificates for dielectric strength, tensile strength, moisture content, and ash content are available on request.
Ash content is the residual mineral content in the cellulose paper — the inorganic impurities that remain when the paper is incinerated. In transformer applications, ionic impurities dissolve into the transformer oil over time, increasing its electrical conductivity and reducing its dielectric strength. High ash content accelerates oil degradation and shortens transformer service life. ACC Insulations maintains ash content below 1.0% in all electrical grade press paper to protect transformer oil quality across the equipment's full 25–30 year service life.
Yes. ACC Insulations supplies electrical grade press paper in standard and custom thicknesses from 0.05 mm to 1.0 mm, in custom roll widths, and as flat cut sheets to your specified dimensions. We have in-house slitting and rewinding equipment for any width required for hand wrapping or automated winding machine use. Custom specifications are available on request for OEM transformer manufacturers.
Calendering is the final stage of press paper manufacture where the formed and dried cellulose sheet is passed through precision steel rollers under controlled pressure. The rollers compress the paper to its target thickness, producing a smooth, uniform surface and consistent density across the full roll width. Properly calendered press paper has predictable dielectric strength, uniform oil absorption, and dimensional stability — critical properties for transformer winding where each layer must perform identically. Inconsistent calendering creates weak spots where partial discharge can initiate.
