Electrical insulation in power transformers performs two distinct functions simultaneously: blocking high-voltage electrical stress and withstanding violent mechanical forces during fault events. Most engineers focus on dielectric strength—but mechanical rigidity of the solid insulation system determines whether a transformer survives a short-circuit event intact or suffers catastrophic winding collapse.

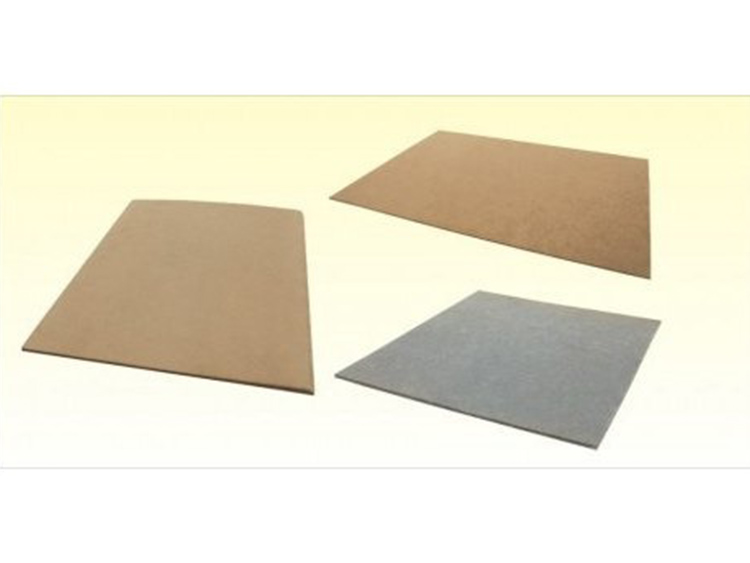

High-density pre-compressed pressboard addresses both requirements. Manufactured from refined electrical-grade wood pulp and processed under extreme heat and hydraulic pressure, pre-compressed pressboard delivers near-zero compressibility, superior oil-impregnation kinetics, and Class A (105°C) thermal endurance—qualities no standard calendered or laminated sheet can replicate.
1. Manufacturing Process & Material Composition
Pre-compressed pressboard originates from 100% unbleached, sulphate-process electrical-grade wood pulp. No synthetic binders, no fillers, no adhesives—just highly refined, long-chain cellulose fibers. This chemical purity prevents contamination of transformer oil, which would otherwise accelerate oxidation and reduce oil dielectric strength.
Stage-by-Stage Manufacturing
- Pulp Refining: Raw kraft pulp undergoes controlled beating to achieve optimal fiber length distribution. Shorter fibers pack tightly; longer fibers create inter-fiber hydrogen bonding—both contributing to final board density.
- Sheet Formation: Refined slurry forms on a continuous wire mesh former. Multiple plies laminate wet-on-wet, ensuring a homogeneous, void-free cross-section with no delamination planes.
- Hot Hydraulic Pressing: Wet formed sheets press under 3–8 MPa hydraulic pressure at elevated temperatures (130–160°C). This step pre-compresses the fiber matrix to near its theoretical minimum void fraction—permanently locking in density before any service load ever acts on the material.
- Conditioning: Pressed boards condition under controlled humidity to reach equilibrium moisture content of 6–8%, preventing hygroscopic swelling in service.
Synthetic binders hydrolyze in hot transformer oil, releasing acids and polar compounds. Acid contamination reduces oil dielectric strength and accelerates cellulose aging via the Pilling–Bedworth mechanism. Zero-binder pre-compressed pressboard maintains transformer oil quality across a 25–40 year service life.
2. Short-Circuit Electromagnetic Forces – Quantified
During a bolted three-phase short-circuit, current in transformer windings can reach 15–25 times rated current within milliseconds. These fault currents create enormous electromagnetic forces acting in two orthogonal directions:
- Axial Forces: Compressive and tensile forces acting along winding height, caused by ampere-turn imbalance between primary and secondary. These attempt to crush end spacers and end rings, or pull conductors away from core limbs.
- Radial Forces: Hoop tensile stress in outer windings and compressive buckling stress in inner windings, acting radially outward and inward respectively. Radial forces scale with (fault current)² and can reach hundreds of kilonewtons in large power transformers.
"Radial short-circuit force scales with the square of fault current. Doubling fault current quadruples destructive radial force—making high-density structural insulation non-negotiable in transformers operating on stiff grids."
Why Softness Kills Transformers
Insulation materials with high compressibility—including standard calendered pressboard (0.90–1.05 g/cm³) and older kraft paper laminations—compress under sustained clamping loads. Even 1–2 mm of total spacer compression across a tall winding stack translates to significant winding looseness. Loose windings vibrate at 100/120 Hz during normal operation, progressively fatigue conductor insulation, and collapse entirely during first major fault event.
Pre-compressed pressboard with density ≥ 1.25 g/cm³ and residual compressibility <2% maintains tight winding geometry from initial assembly through decades of fault cycling.
3. Dimensional Stability – Pre-Compressed vs. Calendered Pressboard
Dimensional stability encompasses two separate phenomena: initial compressibility under assembly clamping forces, and long-term creep under sustained mechanical load combined with thermal cycling. Pre-compressed pressboard excels in both areas.
| Property | Pre-Compressed Pressboard | Standard Calendered Pressboard |
|---|---|---|
| Nominal Density (g/cm³) | 1.25 – 1.35 | 0.90 – 1.05 |
| Compressibility at 5 MPa (%) | < 2% | 5 – 12% |
| Compressive Strength (MPa) | 60 – 80 | 20 – 35 |
| Tensile Strength MD (MPa) | 70 – 100 | 30 – 55 |
| Short-Circuit Withstand Suitability | ✔ High-duty structural | ✘ Low-duty spacers only |
| Oil Impregnation Rate | ✔ Rapid (uniform capillary) | ✔ Moderate |
| IEC Governing Standard | IEC 60641-3-1 Type B | IEC 60641-3-1 Type A |
4. Oil Impregnation & Dielectric Synergy
A counterintuitive characteristic of pre-compressed pressboard: despite rock-solid density, capillary structure within fiber bundles remains open and highly uniform. This enables rapid, complete transformer oil penetration during vacuum-pressure impregnation (VPI) cycles.
How Oil-Impregnation Enhances Dielectric Performance
- Void Elimination: Dry cellulose has a dielectric strength of ~10 kV/mm. Oil-impregnated cellulose achieves 30–50 kV/mm. Any residual air void reduces this by orders of magnitude and acts as a nucleation site for partial discharge (PD).
- Compatible Permittivity: Relative permittivity of pre-compressed pressboard (εr ≈ 4.4) closely matches transformer oil (εr ≈ 2.2). This controlled permittivity ratio prevents excessive electric field concentration at oil–pressboard interfaces—a critical factor in preventing impulse flashover during lightning strike events.
- Moisture Buffering: Cellulose acts as a molecular sponge, absorbing dissolved water from aging transformer oil during cooler operating periods and releasing it slowly during thermal excursions. This moisture buffering maintains oil dielectric quality between scheduled dry-out maintenance cycles.
"Oil-impregnated pre-compressed pressboard acts as both structural backbone and dielectric partner—mechanically holding windings rigid while synergistically enhancing the insulation system's voltage-withstand capability by a factor of 3–5× versus dry cellulose alone."
5. Machined Components: Spacers, Angle Rings & Cylinders
Pre-compressed pressboard utility extends far beyond flat sheet supply. High-density board machines cleanly without delamination—enabling precision CNC-fabricated components with tight dimensional tolerances (±0.1 mm) directly from stock.
Critical Transformer Components Machined from Pre-Compressed Pressboard
- Axial Spacers: Radially inserted between winding turns to create oil cooling ducts. Dimensional precision directly controls cooling duct width and, consequently, thermal gradient across winding height. Machined from pre-compressed pressboard, spacers maintain exact duct geometry under full clamping loads without creep.
- End Rings & Angle Rings: Circular insulation rings at winding ends distribute axial clamping force uniformly across conductor cross-sections. Angular shapes machine from stacked pre-compressed pressboard without spring-back, maintaining geometry under sustained compressive load.
- Insulating Cylinders: Concentrically wound around winding limbs to provide inter-winding oil gap barriers. Cylinders constructed from pre-compressed pressboard strips tolerate differential thermal expansion between copper conductors and steel core without cracking or delaminating.
- Lead Exit Tubes & Electrode Shields: High-voltage lead exits require precision-machined pressboard tubes and shaped shields to grade electric field away from stress concentration points. Pre-compressed board's machinability allows complex 3D-profiled shapes impossible with softer grades.
ACC Insulations' in-house CNC machining center produces ready-to-assemble pressboard spacers, rings, and cylinders to customer-supplied drawings. Lead times for standard profiles: 5–10 working days. First-article dimensional reports supplied with every batch.
6. IEC Standards, Testing & Quality Benchmarks
Specification of pre-compressed pressboard for power transformer applications requires alignment with IEC 60641-3-1 (pressboard for oil-impregnated transformers). Key parameters verified during incoming quality control at transformer manufacturers include:
- Density (IEC 60641-2 Cl. 4.1): Measured by buoyancy method. Minimum 1.15 g/cm³ for Type B; nominal 1.25–1.35 g/cm³ for high-duty structural applications.
- Compressibility (IEC 60641-2 Cl. 4.6): Specimen loaded to 5 MPa; thickness change expressed as percentage. Pre-compressed Type B boards: maximum 2%. Standard Type A boards: up to 12%.
- Dielectric Strength (IEC 60243): Oil-impregnated specimens tested at power frequency. Minimum 30 kV/mm for 1 mm boards; typically 40–50 kV/mm for high-density grades.
- Volume Resistivity (IEC 62631-3-1): ≥ 10¹⁰ Ω·m at 90°C ensures leakage current remains within safe bounds at full operating temperature.
- Chemical Purity – Chloride Content: Maximum 50 ppm. Chloride ions accelerate oil oxidation and copper corrosion; stringent limits protect oil quality and winding integrity over transformer lifetime.
- Thermal Class (IEC 60085): Class A, rated 105°C maximum continuous hotspot. Compatible with all mineral oil-cooled transformer designs (ONAN, ONAF, OFAF cooling classes).
Engineering Tools Suite
Calculate clamping pressures, expected spacer stack compression, dielectric safety margins, and oil impregnation parameters for your pressboard-insulated transformer design.
Frequently Asked Questions
High-density pre-compressed pressboard achieves nominal density of 1.25–1.35 g/cm³, versus standard calendered pressboard at 0.90–1.05 g/cm³. Higher density directly translates to higher compressive strength (60–80 MPa vs. 20–35 MPa) and near-zero in-service compressibility. In transformer assemblies, this ensures winding clamping forces remain constant throughout service life rather than relaxing as soft spacers crush under sustained load.
Pre-compressed pressboard and densified laminated wood (DLW) serve related but distinct roles. Pressboard excels in thin-profile spacers, flat sheets, and machined rings where consistent density and oil compatibility matter. DLW handles extreme compressive loads in core clamping structures and press-fit clamping frames where much greater thickness and higher absolute compressive strength are required. Both materials complement each other in large power transformer construction.
IEC 60641-3-1 covers pressboard and pressboard components for use in oil-impregnated transformers and reactors. This standard defines requirements across two board types: Type A (standard calendered, density ≥0.90 g/cm³) and Type B (pre-compressed, density ≥1.15 g/cm³). For structural applications—spacers, cylinders, end rings under mechanical load—Type B grade under IEC 60641-3-1 applies.
ACC Insulations supplies pre-compressed pressboard from 0.5 mm to 50 mm thickness in standard sheet sizes, with custom thicknesses available on request. Machined components—spacers, rings, cylinders—fabricate from stacked and bonded board up to any required cross-section. Contact our engineering team with drawing requirements for custom profiles and lead time confirmation.
Pre-compressed pressboard maximizes performance in oil-impregnated environments where oil penetration achieves full dielectric synergy. In dry-type transformers, cellulose-based pressboard operates at reduced dielectric strength (dry state ~10 kV/mm vs. 40 kV/mm oil-impregnated) and requires careful humidity control. For dry-type applications above Class B thermal requirements, epoxy-glass laminates (G10/FR4) or NMN composites offer better moisture resistance and higher thermal class ratings.
Source Precision-Machined Pre-Compressed Pressboards
ACC Insulations supplies IEC 60641-3-1 Type B pre-compressed pressboard in standard and custom dimensions with in-house CNC machining to finished spacers, rings, cylinders, and milled components. Batch test reports and dimensional inspection records supplied as standard.
