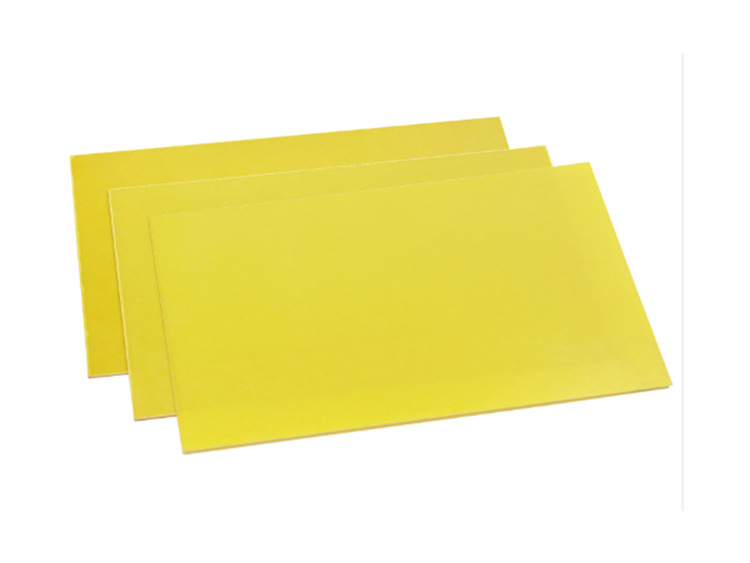

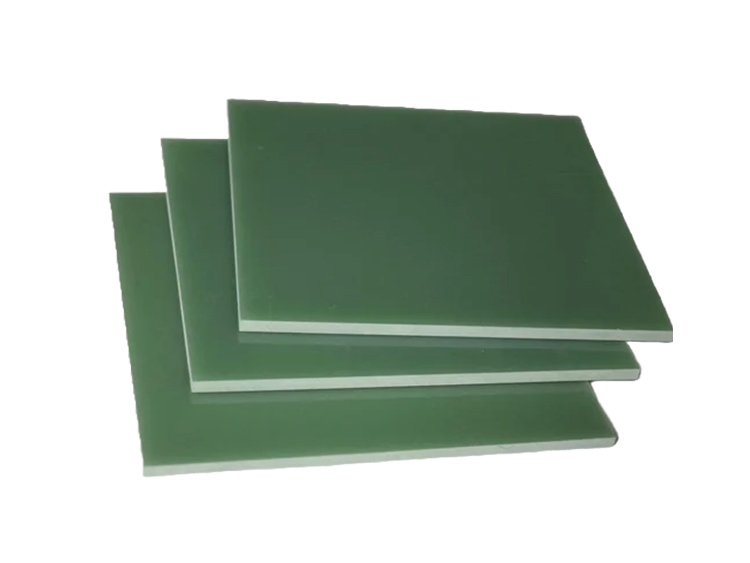

Glass Composite Sheets (GFRP)
Glass composite sheets — also known as GFRP sheets, fiberglass composite panels, epoxy glass laminate sheets, or glass fibre reinforced polymer sheets — combine woven glass fibre reinforcement with epoxy or polyester resin, hydraulic hot-press cured into rigid flat panels. ACC Insulations component-fabricates and distributes electrical-grade grades (G10, FR4, G11 — IEC 60893 EP GC 201/202) and general-purpose grades (GP GP 201/202) to transformer OEMs, switchgear manufacturers, and industrial fabricators across India.
Exceptional dielectric strength (20–30 kV/mm), tensile strength up to 350 MPa, chemical resistance, and dimensional stability make glass composite sheets indispensable wherever insulation performance and structural rigidity coexist in demanding environments.
Full Technical Specifications
| Glass Composite Sheets (GFRP) — Technical Data | |
|---|---|
| Product Name | Glass Composite Sheets — GFRP Epoxy & Polyester Laminate |
| Grades Available | G10 / FR4 / G11 (Epoxy) | GP GP 201 / GP GP 202 (Polyester) |
| IEC Classification | IEC 60893 Type EP GC 201 / EP GC 202 (Epoxy) | GP GP 201 / GP GP 202 (Polyester) |
| Reinforcement | Woven E-glass fibre fabric (plain weave / twill weave) |
| Resin Systems | Epoxy (bisphenol-A) | Unsaturated polyester |
| Thickness Range | 1 mm to 50 mm (custom sizes manufactured to drawing) |
| Dielectric Strength | Epoxy grade: 20–30 kV/mm | Polyester grade: 15–20 kV/mm (IEC 60243) |
| Tensile Strength | Epoxy grade: up to 350 MPa | Polyester grade: up to 200 MPa |
| Max Service Temperature | Epoxy: 130°C — Class F | Polyester: 100°C — Class B |
| Water Absorption | < 0.5% — no warping, no dimensional shift |
| Flame Retardancy | FR4 grade: UL94 V-0 | G10/G11: non-retardant |
| Chemical Resistance | Acids, alkalis, solvents, transformer oil, industrial chemicals |
| Machinability | CNC routing, drilling, sawing, water-jet cutting — full machinable |
| Standards Compliance | IEC 60893, IEC 60243, IS 1441, customer-specific OEM requirements |
| Application Sectors | Transformer insulation, switchgear panels, chemical tanks, transportation, construction |
What Are Glass Composite Sheets?
Glass composite sheets — classified as glass fibre reinforced polymer (GFRP) laminates — combine multiple layers of woven E-glass fibre fabric impregnated with thermoset resin (epoxy or polyester), then consolidated under hydraulic pressure and heat into a dense, void-free flat panel. Each layer of glass fabric contributes tensile strength and dimensional stability; the cured resin matrix bonds layers together and delivers dielectric insulation, chemical resistance, and moisture impermeability.
The resulting panel outperforms conventional insulation materials — pressboard, paper, phenolic laminate — across every critical performance metric relevant to modern transformer, switchgear, and industrial engineering. Rigid, machinable, thermally stable, and certified to IEC 60893, glass composite sheets serve as structural insulation in environments where both high voltage and mechanical load must be simultaneously managed.
GFRP Laminate Structure — How Layers Build Performance
Performance of glass composite sheets derives directly from their laminate architecture — alternating glass fibre fabric layers and resin layers, precision-stacked and hot-pressed:
Laminate Cross-Section — Glass Fabric + Resin Matrix
Alternating layers hot-press consolidated under hydraulic pressure into void-free rigid laminate
| Layer Component | Material Function | Performance Contribution |
|---|---|---|
| E-glass fibre fabric | Structural reinforcement — carries tensile and compressive loads | Tensile strength up to 350 MPa, impact resistance, dimensional stability |
| Epoxy resin matrix | Dielectric insulation, chemical barrier, binds glass layers | 20–30 kV/mm dielectric strength, chemical resistance, moisture barrier |
| Layer count / thickness | Controls overall thickness from 1 mm to 50 mm | Higher thickness = greater mechanical rigidity, higher voltage clearance |
| Hydraulic hot-press cure | Consolidates layers under pressure, eliminates voids | Void-free laminate — no air pockets that reduce dielectric strength |
Standard Grades — Epoxy vs Polyester
ACC Insulations fabricates and distributes two resin system families, each targeting distinct performance requirements and budget profiles:
Electrical-Grade Epoxy Laminate
Highest dielectric performance (20–30 kV/mm), tensile strength up to 350 MPa, Class F thermal rating (130°C), and superior chemical resistance. Mandatory for transformer insulation barriers, HV switchgear, and demanding electrical applications. FR4 variant adds UL94 V-0 flame retardancy. G11 variant retains high flexural strength at elevated temperature.
General-Purpose Polyester Laminate
Cost-effective structural GFRP for construction cladding, transportation panels, chemical tanks, and signage. Dielectric strength 15–20 kV/mm, tensile up to 200 MPa, Class B rating (100°C). Suitable for moderate chemical environments. Not recommended for primary HV electrical insulation — specify epoxy grades for transformer and switchgear applications.
Custom resin formulations, fire-retardant variants, and OEM-specific laminate compositions available on request. MOQ applies for non-standard grades.
Key Performance Properties
Applications of Glass Composite Sheets
GFRP vs Paper-Based & Pressboard Insulation
Transformer and switchgear engineers increasingly specify glass composite sheets over conventional pressboard and phenolic laminate — particularly for high-MVA, high-voltage, or chemically aggressive service environments:
| Property | Glass Composite (GFRP) | Pressboard / Kraft Paper | Phenolic Laminate |
|---|---|---|---|
| Dielectric strength | ✓ 20–30 kV/mm | Moderate — degrades with moisture | Moderate — surface tracking risk |
| Moisture resistance | ✓ <0.5% absorption — no dimensional change | ✗ Hygroscopic — absorbs moisture, swells | Moderate — some moisture uptake |
| Tensile strength | ✓ Up to 350 MPa — structural grade | ✗ Low — not structural | Moderate — brittle under impact |
| Service life | ✓ 3–5× longer — no hydrolytic degradation | Limited — cellulose degrades in hot oil | Moderate |
| CNC machinability | ✓ Full — drill, route, water-jet | ✗ Not machinable to precision | Partial — brittle, chips |
| Thermal class | ✓ Class F (130°C) — Epoxy grade | Class A (105°C) — cellulose limit | Class B (130°C) |
| Chemical resistance | ✓ Acids, alkalis, solvents, transformer oil | ✗ Cellulose degrades in acids/alkalis | Moderate |
| Cost | Higher material cost | ✓ Lower unit cost | Mid-range |
Manufacturing Process — ACC Insulations, Nashik
Every glass composite sheet fabricated at ACC Insulations' Nashik facility follows a controlled multi-stage production process designed for repeatable laminate quality and consistent electrical performance batch-to-batch:
Glass Fibre Fabric Selection
Premium woven E-glass fibre fabric — plain weave or twill weave — selected per grade specification. Incoming fabric tested for weight, weave uniformity, and freedom from contamination before release to production.
Precision Resin Impregnation
Glass fabric fed through a resin bath — epoxy or polyester — at controlled viscosity and temperature. Resin content per prepreg layer controlled gravimetrically to ensure consistent laminate resin-to-glass ratio and reproducible electrical and mechanical properties.
B-Stage Drying — Prepreg Formation
Resin-impregnated fabric passes through a controlled-temperature drying tower, advancing the resin to B-stage — partially cured, non-tacky, handleable. Prepreg sheets cut to panel dimensions and stacked to target layer count for specified finished thickness.
Hydraulic Hot-Press Curing
Stacked prepreg layers loaded into hydraulic press platens. Temperature-profiled cure cycle — controlled ramp, hold, and cool — under uniform hydraulic pressure consolidates all layers into a void-free, fully bonded composite. Pressure eliminates entrapped air pockets that would otherwise reduce dielectric strength.
Post-Cure Inspection & Slitting
Cured panels trimmed, thickness-checked at multiple points, visually inspected for delamination or surface defects, and tested for dielectric breakdown per IEC 60243. Panels cut to customer sheet dimensions or supplied as standard master sheets per drawing.
Quality Control & Standards Compliance
Each production batch undergoes comprehensive QA protocol before dispatch — test certificates available on request for all electrical-grade shipments:
- Thickness measurement — contact micrometer, multiple-point check across panel face, verified against ±tolerance per grade specification
- Dielectric breakdown voltage — tested per IEC 60243 on coupons from each batch, reported in kV/mm
- Tensile strength — crosshead pull test on warp and weft specimens, MPa reported per batch
- Water absorption test — 24-hour immersion per IEC 60893 Clause 6, verified <0.5%
- Visual and surface inspection — delamination, resin voids, fibre exposure checked per acceptance criteria
- Resin content verification — loss-on-ignition (LOI) test confirms glass-to-resin ratio within specification
- Flame retardancy (FR4) — UL94 V-0 vertical burn test on FR4 grade batches
Standards compliance: IEC 60893 (industrial rigid laminated sheets), IEC 60243 (dielectric breakdown), IS 1441 (glass fabric laminate), and OEM-specific drawing requirements. Material Test Certificates (MTC) issued per batch on request.
Why Choose ACC Insulations for Glass Composite Sheets?
Component Manufacturer & Distributor
ACC Insulations component-fabricates and distributes GFRP sheets from Nashik, Maharashtra — direct factory supply, no intermediary markup, full quality traceability from raw material to finished panel.
Custom Thickness — 1mm to 50mm
Standard and non-standard thicknesses manufactured to customer drawings. Custom panel dimensions, pre-cut blanks, and machined components supplied per OEM specification. MOQ applies for non-standard sizes.
IEC 60893 / IS 1441 Compliant
All electrical-grade laminates comply with IEC 60893 EP GC 201/202 and IS 1441. Batch-level Material Test Certificates and dielectric test reports provided on request — essential for transformer and switchgear OEM audits.
Multi-Grade Portfolio
G10, FR4, G11 epoxy grades and GP GP 201/202 polyester grades stocked — engineers specify the right grade for dielectric, thermal, chemical, and cost requirements without seeking multiple suppliers.
Reliable Supply Chain
Consistent production scheduling and Nashik-based distribution ensures on-time delivery to transformer manufacturers, switchgear OEMs, and industrial fabricators across Maharashtra and pan-India.
Technical Application Support
Engineering team advises on grade selection, thickness for target dielectric clearance, machining parameters, and compatibility with specific electrical or chemical service environments.
Engineering Tools Suite
Calculate dielectric clearance requirements, structural load limits, chemical resistance thresholds, and GFRP sheet selection parameters for transformer, switchgear, and industrial applications using interactive engineering tools.
Frequently Asked Questions
Glass composite sheets serve across electrical insulation, construction, transportation, and chemical processing. Primary electrical applications: transformer insulation barriers replacing pressboard, switchgear arc panels, HV bus bar supports, motor slot wedges, and electrical enclosure frames. Structural applications: wall and roof cladding panels, truck body side panels, railway carriage interiors, marine hull panels, and chemical storage tank lining. Dielectric strength of 20–30 kV/mm (epoxy grade) and moisture resistance below 0.5% water absorption make GFRP sheets superior to pressboard wherever moisture exposure, chemical contact, or long service life without replacement demand a better material.
ACC Insulations fabricates two resin system families: Epoxy glass laminates — G10, FR4, and G11 equivalents, classified as IEC 60893 Type EP GC 201 and EP GC 202 — targeting transformer insulation, switchgear, and HV electrical applications. Dielectric: 20–30 kV/mm, tensile: up to 350 MPa, thermal class F (130°C). FR4 adds UL94 V-0 flame retardancy; G11 retains flexural strength at elevated temperature. Polyester glass laminates — GP GP 201 and GP GP 202 — for construction cladding, transportation panels, and chemical processing where lower dielectric requirements and cost-sensitivity apply. Custom grades available on request.
Standard production range: 1 mm to 50 mm thickness. Custom thicknesses outside standard range, non-standard sheet dimensions, and pre-cut blanks to OEM drawings manufactured on request. Minimum order quantities apply for non-standard configurations. Both epoxy and polyester grades available across standard thickness range. Contact sales team with specific thickness and dimension requirements for pricing and lead time.
Epoxy glass laminates (G10/FR4/G11 — EP GC 201/202) achieve 20–30 kV/mm dielectric breakdown strength tested per IEC 60243. Polyester glass laminates (GP GP 201/202) achieve 15–20 kV/mm. Values vary with thickness — standard convention reports dielectric strength on 1mm specimens; thicker sheets test at lower apparent kV/mm due to statistical volume effects. Material Test Certificates (MTC) with actual dielectric test values issued per production batch on request — essential for transformer and switchgear OEM incoming inspection.
All three use epoxy resin with woven E-glass fibre, but differ in specific performance characteristics: G10 — baseline electrical-grade epoxy glass laminate, excellent dielectric strength and mechanical properties at room temperature, no flame retardancy requirement. FR4 — G10 base with flame-retardant epoxy formulation achieving UL94 V-0 rating — mandatory for switchgear, enclosed electrical panels, and any equipment where fire propagation risk must be controlled. G11 — retains significantly higher flexural strength at elevated temperatures (above 130°C) compared to G10/FR4 — preferred for transformer applications where winding clamping temperature exceeds standard Class F conditions or where high-temperature mechanical loading occurs. All three comply with IEC 60893 EP GC 201/202 classifications.
Glass composite sheets support full CNC machining — routing, drilling, sawing, and milling with carbide-tipped tooling at standard cutting speeds. Water-jet cutting recommended for complex profiles and precision geometries requiring no heat-affected zone. ACC Insulations supplies panels as standard master sheets or pre-cut blanks to customer drawings. Machined components — drilled holes, notched edges, routed slots — manufactured to drawing on request. Discuss specific machining requirements and tolerances with technical sales for feasibility and lead time.
Epoxy-grade glass composite sheets (G10/FR4/G11) resist mineral transformer oil, synthetic ester fluids, strong acids, alkalis, organic solvents, and industrial chemicals — chemically stable across the full thermal operating range of Class F insulation. No measurable degradation in dielectric strength or mechanical properties after prolonged immersion in transformer oil at 130°C service conditions. Polyester-grade laminates resist dilute acids, alkalis, and many solvents — specify epoxy grades for transformer oil contact applications. Water absorption below 0.5% ensures no swelling or dimensional instability in humid or wet environments.
