FRP Pultruded Profiles
FRP (Fibre Reinforced Polymer) pultruded profiles — also called GRP (Glass Reinforced Plastic) sections — are continuous composite structural members produced by the pultrusion process. Glass fibre rovings are pulled through a liquid resin bath and cured in a heated die, producing profiles with precisely aligned reinforcement fibres that deliver outstanding tensile strength, electrical insulation, and corrosion resistance in a single, consistent cross-section.
ACC Insulations manufactures FRP pultruded profiles in Nashik, India, in a wide range of cross-section shapes and resin systems for transformer busbar supports, switchgear insulation structures, cable trays, and corrosion-resistant industrial frameworks. Our profiles provide dielectric strength of 10–15 kV/mm and outperform steel in electrical and corrosion-critical environments.
What Are FRP Pultruded Profiles?
Pultrusion is a pull-based continuous composite manufacturing process — unlike extrusion which pushes material. Dry glass fibre rovings are pulled through a precision resin bath, then through a heated die that simultaneously shapes and cures the composite into a constant cross-section profile. The longitudinal fibre alignment gives the finished section exceptional strength along its load axis — tensile strength of 200–350 MPa, rivalling structural steel at one-quarter the weight.
How the Pultrusion Process Works
Pultrusion is a continuous, highly automated composite manufacturing process that produces structural profiles with consistent cross-sections and precisely controlled fibre orientation — delivering the same mechanical and electrical properties in every metre of profile produced.
Fibre Creel
E-glass rovings and mats are drawn from a creel rack — the dry reinforcement package
Resin Bath
Rovings are pulled through a heated resin bath (epoxy, vinyl ester, or polyester) and thoroughly wetted out
Preform Guide
A series of guides pre-forms the wet fibre bundle into the approximate profile shape before entering the die
Heated Die
The composite enters a precision heated steel die. The die simultaneously shapes the cross-section and thermally cures the resin
Pull System
A continuous reciprocating puller maintains constant pulling force, controlling the production speed and fibre tension
Cut to Length
A travelling saw cuts finished profiles to specified lengths. CNC machining follows for custom features
Why longitudinal fibre alignment matters: In the pultrusion process, fibres run continuously along the full length of the profile — they are never cut or interrupted. This gives pultruded FRP profiles their exceptional tensile strength of 200–350 MPa longitudinally, which is the primary loading direction for structural sections. This is fundamentally different from moulded composites where fibre orientation is random and properties are lower and less predictable.
FRP Pultruded Profile Shapes We Manufacture
Each cross-section shape is optimised for a specific structural or insulation function. ACC Insulations produces all standard profiles and can manufacture custom cross-sections to your drawing.
Choosing the Right Resin System
The resin matrix determines the chemical resistance, thermal performance, and electrical properties of the finished profile. Choosing correctly is critical to long-term performance in service.
Best for Electrical Applications
Epoxy resin provides the highest dielectric strength, best thermal stability, and excellent adhesion to glass fibres — making it the preferred resin for all high-voltage electrical insulation applications.
- Dielectric strength: up to 15 kV/mm perpendicular
- Thermal Class F (155°C) or Class H (180°C)
- Excellent chemical resistance
- Highest fibre-matrix adhesion
- Best for transformer, switchgear, HV busbar supports
Best for Chemical Environments
Vinyl ester combines epoxy-like mechanical performance with significantly superior resistance to acidic and alkaline chemical attack — the preferred choice for chemical plant structures, offshore platforms, and water treatment infrastructure.
- Outstanding resistance to acids, alkalis, and solvents
- Good dielectric strength (slightly lower than epoxy)
- Excellent for marine and offshore structures
- Best for chemical plant walkways and support frames
- Lower water absorption than polyester
Cost-Effective General Purpose
Polyester is the most economical resin option for FRP pultrusion, providing good mechanical properties and weathering resistance for industrial structural applications where chemical exposure is moderate and electrical performance requirements are lower.
- Lowest cost resin option
- Good UV and weather resistance
- Suitable for general industrial structures
- Flame retardant grades available (UL94 V-0)
- Best for cable trays, walkways, general framing
FRP Pultruded Profiles — Comprehensive Overview
10–15 kV/mm Dielectric Strength
¼ the Weight of Steel
Zero Corrosion
Non-Magnetic
FRP pultruded profiles from ACC Insulations deliver a combination of properties that no single conventional material — steel, aluminium, or timber — can match. The pultrusion process aligns glass fibres longitudinally, giving the finished profile tensile strength of 200–350 MPa along its load axis while the glass-resin matrix provides inherent electrical insulation, zero corrosion, and non-magnetic behaviour.
In transformer applications, the non-magnetic property is not a secondary benefit — it is a fundamental design requirement. Any ferromagnetic structural member placed within a transformer's magnetic circuit generates eddy currents that cause localised heating and reduce transformer efficiency. FRP profiles are completely unaffected by magnetic fields, making them the only viable structural material for busbar supports and winding spacers in large power transformers.
- Advanced Resin Systems: Epoxy, Vinyl Ester, and Polyester — each selected for the specific chemical, electrical, and thermal demands of the application. Epoxy for electrical/transformer duty; Vinyl Ester for chemical environments; Polyester for cost-sensitive structural applications
- Flame Retardancy: Profiles manufactured to UL94 V-0 self-extinguishing standard for use in indoor switchgear rooms, cable tunnels, and enclosed electrical installations where fire propagation must be prevented
- Structural Integrity: High fibre volume fraction (typically 55–65%) delivers consistent mechanical properties along the full profile length — no weak spots or voids as can occur in moulded or hand-laid composites
- Environmental Endurance: In coastal or chemical plant environments where steel requires continuous painting and maintenance, and aluminium corrodes in alkaline or salt environments, FRP profiles remain unaffected by salt air, acids, alkalis, or UV exposure for the full service life
Product Specification
| FRP Pultruded Profiles — Technical Data | |
|---|---|
| Reinforcement | E-Glass rovings, woven rovings, and CSM mats |
| Fibre Volume Fraction | 55–65% (typical) |
| Resin Matrix | Electrical Grade Epoxy, Vinyl Ester, or Polyester |

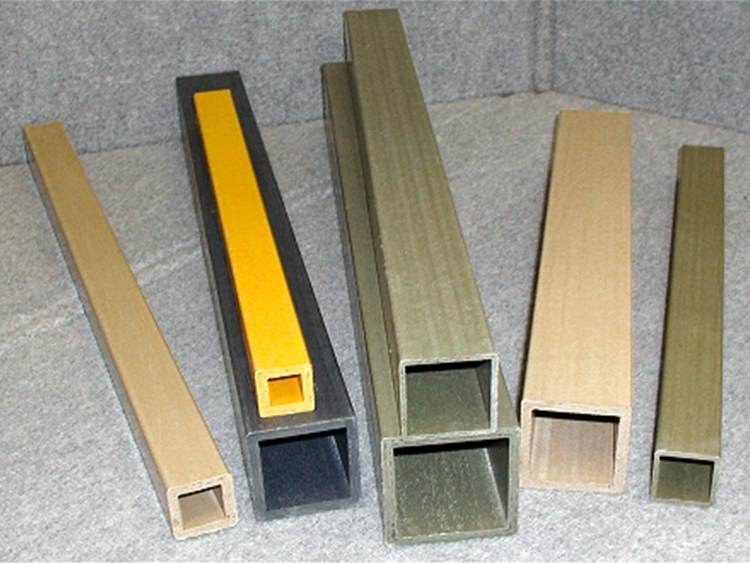

| Available Profiles | Dog Bone, Corner Angle, Flat Strip, Solid Rod, I-Beam, Channel, Tube |
| Standard Surface Finish | Smooth, non-tracking surface — suitable for high-voltage applications |
| Colour | Natural (off-white/cream), Green, Grey — custom available |
| Standards | IEC 61212, ASTM D635, ASTM D570, UL94 V-0 |
Technical Specifications
| Property | Value |
|---|---|
| Tensile Strength (Longitudinal) | 200–350 MPa |
| Flexural Strength | 350–450 MPa |
| Compressive Strength (Longitudinal) | 200–300 MPa |
| Dielectric Strength (Perpendicular) | 10–15 kV/mm |
| Dielectric Strength (Parallel / Longitudinal) | 30–50 kV (surface tracking resistance) |
| Thermal Class | Class F (155°C) or Class H (180°C) |
| Specific Gravity | 1.8–2.0 g/cm³ (approx. ¼ of steel) |
| Water Absorption (ASTM D570, 24 hrs) | < 0.5% |
| Barcol Hardness | > 45 |
| Coefficient of Thermal Expansion | 7–9 × 10⁻⁶ /°C (longitudinal) |
| Flame Retardancy | UL94 V-0 (flame retardant grades) |
FRP Pultruded Profiles vs Steel vs Aluminium
For engineers evaluating structural material selection, this comparison shows where FRP pultruded profiles outperform conventional metal structural sections in electrical and corrosion-critical environments.
| Property | FRP Pultruded | Structural Steel | Aluminium |
|---|---|---|---|
| Electrical Conductivity | Zero — inherently insulating | High — must be grounded | High — must be grounded |
| Dielectric Strength | 10–15 kV/mm | Nil | Nil |
| Magnetic Properties | Non-magnetic — no eddy currents | Magnetic — eddy current losses | Non-magnetic |
| Corrosion Resistance | Excellent — no rust, no coating needed | Poor — requires painting, galvanising | Moderate — degrades in alkalis |
| Weight (relative to steel) | ~25% of steel weight | Reference (100%) | ~35% of steel weight |
| Grounding Requirement | None required | Mandatory | Mandatory |
| Maintenance (10-year) | Zero — no painting or coating | High — repainting, re-galvanising | Low to moderate |
| Strength-to-Weight Ratio | High (longitudinal) | High | High |
Key Properties & Performance
Lightweight
High Strength
Corrosion Resistant
Dimensional Stability
Non-Conductive
Weather Resistant
- Electrical Safety: Native insulation properties eliminate the risk of step and touch potentials in high-voltage electrical installations — no grounding required
- Low Thermal Conductivity: Acts as a thermal break in cryogenic, heat-sensitive, or thermally isolated applications where metallic structural connections would create heat-flow paths
- RF Transparency: FRP profiles do not attenuate radio frequency signals — making them the structural material of choice for antenna masts, radome structures, and RF-sensitive enclosures
- Zero Grounding Requirement: Unlike steel or aluminium, FRP profiles do not require complex grounding systems, saving installation time and ongoing maintenance cost
Custom Fabrication & CNC Machining
ACC Insulations provides ready-to-assemble solutions. Our in-house CNC machining centre handles complex FRP section fabrication to customer drawings:
- Precision drilling and countersinking for busbar support bolt holes and mounting fixing positions
- Milling of grooves and slots for transformer winding spacers where oil circulation paths must be maintained
- Internal and external threading for composite tie-rods and non-conductive fastener assemblies used in HV transformer clamping structures
- Custom lengths with burr-free edges — clean cuts without delamination or fibre pull-out, ready for direct installation
- Assembly sub-components — pre-drilled, pre-threaded profile assemblies matched to your BOM for faster site installation
Applications of FRP Pultruded Profiles
- Transformer busbar supports and winding spacers — the primary electrical application. FRP dog bone and flat strip sections support HV busbars and maintain winding geometry in oil-filled power transformers without eddy current losses
- Switchgear insulation structures — angle sections and rods used as non-conductive framework inside medium and high-voltage switchgear panels
- FRP cable trays and cable ladder systems — I-beam and channel sections forming cable tray side rails and rungs in substation cable tunnels, offshore platforms, and chemical plant cable routes
- Substation maintenance walkways and grating — structural I-beams and angle sections forming safe, non-conductive elevated walkways over live HV equipment
- Offshore and marine structural members — vinyl ester profiles for structural framing in salt water environments where steel would require constant maintenance
- Chemical plant structural frameworks — vinyl ester profiles for support structures in chemical storage, processing, and water treatment facilities exposed to acids, alkalis, and solvents
- Antenna masts and radome structural supports — RF-transparent FRP profiles that do not attenuate or reflect radio frequency signals
- Composite insulation tie-rods — threaded FRP solid rods replacing steel tie-rods in transformer clamping assemblies to eliminate magnetic field distortion
Why Leading Manufacturers Choose ACC Insulations
- Batch Consistency: Automated pultrusion lines with process monitoring ensure every profile meets the same fibre content, surface finish, and dimensional specification — not just the first batch
- Resin System Expertise: Engineering support to select the correct resin system (epoxy, vinyl ester, or polyester) for your specific operating environment — electrical, chemical, or structural
- OEM Partnerships: Trusted by leading Indian and global transformer, switchgear, and electrical equipment manufacturers since 1994
- In-House Testing: Every production batch is tested for dielectric strength (perpendicular and longitudinal) and mechanical rigidity before dispatch. Batch test certificates available on request
- Ready-to-Assemble Fabrication: CNC-machined, drilled, and threaded components delivered to your drawing — reducing your in-house processing time and assembly labour
Standards & Compliance
- IEC 61212 — Insulating hollow tubes used in electrical equipment
- ASTM D635 — Standard test for burning rate of self-supporting plastics
- ASTM D570 — Standard test for water absorption of plastics
- UL94 V-0 — Flame retardancy classification for applicable grades
- Customer-specific OEM transformer and electrical equipment standards accepted on request
Engineering Tools Suite
Calculate exact load-bearing requirements, deflection limits, and dielectric safety margins for your FRP pultruded profiles using our interactive engineering tools.
Frequently Asked Questions
FRP (Fibre Reinforced Polymer) pultruded profiles are composite structural sections produced by the pultrusion process — a continuous manufacturing method where dry glass fibre rovings are pulled through a liquid resin bath and then through a heated die. The die shapes the profile to a constant cross-section and cures the resin simultaneously. The result is a structural section with glass fibres aligned along the loading axis, providing exceptional longitudinal tensile strength (200–350 MPa), high dielectric strength (10–15 kV/mm), and long-term corrosion resistance — all in a single manufacturing step.
FRP pultruded profiles are used in transformer busbar supports and winding spacers, switchgear insulation structures, cable tray frames and cable ladders, substation maintenance walkways, corrosion-resistant industrial structures in chemical plants, offshore platforms, water treatment facilities, antenna and radome supports (RF-transparent), and composite tie-rods for HV transformer clamping assemblies — wherever metallic structural members cannot be used due to electrical conductivity, corrosion, or electromagnetic concerns.
FRP (Fibre Reinforced Polymer) and GRP (Glass Reinforced Plastic) refer to the same category of composite material — the terms are used interchangeably in the industry. FRP is the broader term covering any fibre-reinforced polymer matrix, while GRP specifically refers to glass fibre reinforcement. Pultruded profiles from ACC Insulations use E-glass fibre reinforcement in a thermosetting resin (epoxy, vinyl ester, or polyester), making them both FRP and GRP by definition.
FRP is preferred over steel in electrical applications for three fundamental reasons: (1) Electrical insulation — FRP is non-conductive with dielectric strength of 10–15 kV/mm, eliminating the risk of electrical contact between live conductors and structural members; steel is conductive and requires expensive grounding. (2) Non-magnetic — FRP generates no eddy current losses in transformer magnetic fields, whereas steel core structures cause localised heating and efficiency losses. (3) Corrosion resistance — FRP does not rust and requires no painting, galvanising, or protective coating, making lifecycle cost significantly lower in wet or chemical environments.
Yes. ACC Insulations operates in-house CNC machining centres capable of precision drilling, countersinking, milling of grooves and slots, and internal and external threading on FRP pultruded profiles. We also cut profiles to custom lengths with clean, burr-free edges. All machining is performed to customer drawings, producing ready-to-assemble components for transformer, switchgear, and industrial structure applications.
ACC Insulations offers three resin systems: (1) Electrical Grade Epoxy — best thermal stability, highest dielectric strength, recommended for transformer, switchgear, and HV electrical applications. (2) Vinyl Ester — superior resistance to acidic and alkaline chemical environments, preferred for chemical plant, offshore, and marine structures. (3) Polyester — cost-effective general-purpose option for industrial structural applications where chemical exposure is limited. Flame retardant formulations meeting UL94 V-0 are available in all three resin systems.
FRP pultruded profiles from ACC Insulations comply with IEC 61212 (insulating hollow tubes used in electrical equipment), ASTM D635 (burning rate), ASTM D570 (water absorption), and UL94 V-0 (flame retardancy) for applicable grades. We can also manufacture to customer-specific OEM standards and can provide batch test certificates for mechanical and dielectric properties on request.
