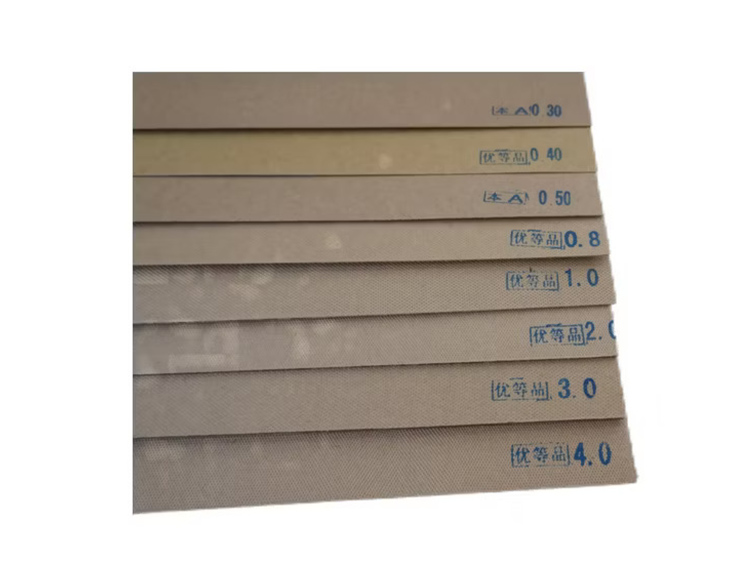

High Density Pre-Compressed Pressboard for Transformer Insulation
High density pre-compressed pressboards are premium-grade solid insulation materials engineered for transformer insulation systems, high-voltage switchgear, and reactor applications. With a density of 1.1–1.2 g/cm³ achieved through controlled hydraulic pre-compression, these cellulose insulation boards deliver superior mechanical strength, excellent dielectric properties, and long-term dimensional stability that standard transformer pressboard cannot match.
ACC Insulations has been manufacturing IEC 60641 and IS 1576-compliant pressboards since 1994, supplying leading transformer OEMs across India and export markets.
(vs ~0.9 standard)
Range Available
per IEC 60085
Service Life
Product Specifications
| High Density Pre-Compressed Pressboard — Technical Data | |
|---|---|
| Material Composition | 100% High-Purity Wood Pulp (Cellulose) — no synthetic binders |
| Density | 1.1 to 1.2 g/cm³ (pre-compressed; standard board ~0.9 g/cm³) |
| Thickness Range | 8 mm to 60 mm (custom sizes available) |
| Thermal Rating | Class A — 105°C continuous (per IEC 60085) |
| Moisture Resistance | Excellent — oil-immersion and synthetic ester compatible |
| Dielectric Strength | High — improves further upon oil impregnation |
| Applicable Standards | IEC 60641-3-1 | IS 1576 | OEM-specific specs |
What Is High Density Pre-Compressed Pressboard?
High density pre-compressed pressboard — also called HD pressboard, transformer board, or cellulose insulation board — is manufactured by laminating multiple layers of high-purity cellulose pulp sheets and subjecting them to controlled hydraulic compression at precisely managed temperatures. This pre-compression process removes internal voids, bonds the cellulose fibres more tightly, and raises the board density to 1.1–1.2 g/cm³.
The result is a rigid, dimensionally stable electrical insulation board that far outperforms standard pressboard (0.9 g/cm³) in mechanical load resistance, dielectric performance, and long-term stability inside oil-immersed transformer environments. It is the preferred solid insulation material for power and distribution transformer insulation systems where structural integrity during short-circuit fault conditions is non-negotiable.
Key Properties of High Density Pre-Compressed Pressboards
Superior Dielectric Strength
Consistent breakdown voltage across full board thickness; performance increases significantly after transformer oil impregnation, enabling higher voltage stress per mm.
Short-Circuit Force Resistance
Pre-compressed density prevents delamination and winding displacement under the intense electromagnetic forces generated during transformer fault events.
Dimensional Stability
Minimal shrinkage or swelling during thermal cycling from cold start to full-load operating temperature, maintaining winding clamping force throughout transformer life.
Full Oil Compatibility
Wicks and retains mineral transformer oil and synthetic ester fluids uniformly, ensuring the oil-paper insulation system operates at rated dielectric efficiency.
Class A Thermal Rating
Rated for 105°C continuous operation per IEC 60085, suitable for all standard oil-immersed power and distribution transformers without derating.
CNC Machinability
Can be precisely cut, milled, drilled, and profiled using standard CNC equipment to exact OEM drawing specifications without delamination or edge chipping.
High Density Pre-Compressed vs Standard Pressboard
Choosing the right type of cellulose insulation board is critical to transformer reliability. Here is how high density pre-compressed pressboard compares to standard transformer pressboard:
| Property | HD Pre-Compressed Pressboard | Standard Pressboard |
|---|---|---|
| Density | 1.1–1.2 g/cm³ | ~0.9 g/cm³ |
| Mechanical Strength | Very High | Moderate |
| Internal Voids | Eliminated by pre-compression | Present |
| Short-Circuit Force Resistance | Excellent | Limited |
| Dimensional Stability | Superior — minimal settlement | Moderate — may settle under load |
| Suitable for Power Transformers (>33 kV) | Yes | Not recommended |
| Typical Service Life | 25+ years | 15–20 years |
Applications of High Density Pre-Compressed Pressboards
These transformer insulation boards are engineered for demanding environments where structural integrity and dielectric reliability are equally critical:
Power & Distribution Transformer Winding Insulation
Used as spacers, barriers, and axial support blocks between HV and LV windings in oil-immersed power transformers from distribution class (11 kV) up to 765 kV EHV class.
End Rings and Clamping Rings
High density pressboard end rings provide axial clamping force retention and resist the compressive electromagnetic forces on winding ends during short-circuit events.
Insulation Barriers Between Windings and Core
Cylindrical barriers and flat barriers manufactured from HD pressboard maintain dielectric clearance between the active parts and the transformer tank or core limbs.
High-Voltage Bushing and Tap Changer Insulation
Structural pressboard components inside bushing chambers and on-load tap changers require the mechanical rigidity and dielectric consistency that only HD pressboard provides.
Reactor and Instrument Transformer Insulation
Shunt reactors and current/voltage instrument transformers benefit from the precise dimensional control and superior oil-wetting characteristics of pre-compressed pressboard.
Role in Transformer Insulation Systems
Inside an oil-immersed transformer, the insulation system comprises both liquid insulation (transformer oil or ester fluid) and solid insulation (pressboard, kraft paper, crepe paper). High density pre-compressed pressboard performs three distinct roles simultaneously:
- Mechanical support: Spacers and support blocks physically hold windings in position, maintaining design clearances under the dynamic electromagnetic forces experienced during normal load cycling and fault events.
- Electrical separation: Barriers and cylinders establish and maintain the required dielectric clearance between HV windings, LV windings, and the grounded core and tank, preventing partial discharge and insulation breakdown.
- Oil channel formation: Precisely positioned spacers create defined oil circulation channels inside the winding, enabling efficient thermal management and limiting hot-spot temperatures.
The superior dimensional stability of HD pre-compressed pressboard ensures these clearances and channels do not change over the transformer's 25+ year service life, directly contributing to reduced maintenance costs and improved system reliability on the electrical grid.
Manufacturing Process at ACC Insulations
Each batch of high density pre-compressed pressboard manufactured at our Nashik, Maharashtra facility follows a defined production protocol to ensure consistent density, dielectric strength, and dimensional accuracy:
Raw Material Qualification
Incoming high-purity cellulose pulp is tested for moisture content, ash content, and pH before production acceptance. Only pulp meeting defined electrical-grade purity standards enters the production line.
Multi-Layer Sheet Formation
Multiple cellulose pulp layers are formed and stacked to achieve the target final thickness (8–60 mm). Layer orientation and uniformity are controlled to ensure isotropic mechanical properties.
Controlled Hydraulic Pre-Compression
Stacked layers are compressed under precisely controlled hydraulic pressure at defined temperature conditions. Pre-compression eliminates internal voids and bonds cellulose fibres uniformly to achieve target density of 1.1–1.2 g/cm³.
Controlled Drying and Calendering
Compressed boards are dried in controlled-humidity chambers to reduce moisture to specification levels. Calendering ensures surface flatness and dimensional consistency across the full sheet.
Batch Testing and Quality Release
Every production batch undergoes dielectric strength testing, tensile strength measurement, density verification, and dimensional checks before quality release. Non-conforming material is quarantined and rejected.
Compliance and Standards
Our high density pre-compressed pressboards are manufactured and tested in compliance with the following international and Indian standards for electrical insulation pressboard:
- IEC 60641-3-1 — Pressboard for electrical purposes: specifications for pressboard for general applications including transformer insulation, covering mechanical and dielectric requirements.
- IS 1576 — Bureau of Indian Standards specification for transformer-grade pressboard used by Indian transformer manufacturers and utilities.
- IEC 60085 — Electrical insulation thermal evaluation; Class A (105°C) continuous temperature rating.
- OEM and customer-specific requirements — We work directly with transformer design engineers to meet proprietary quality specifications and approved vendor registration requirements.
Product Features
- Void-free structure: Pre-compression eliminates air voids that cause partial discharge in high-voltage applications — a key differentiator from standard pressboard.
- Wide thickness range: Available from 8 mm to 60 mm in standard stock and custom thicknesses for specific transformer designs.
- Renewable material: Manufactured entirely from sustainably sourced wood pulp cellulose with no synthetic resins, adhesives, or hazardous additives.
- Ester fluid compatible: Fully suitable for use with both naphthenic mineral oils and modern synthetic ester dielectric fluids such as MIDEL 7131 and FR3.
- Long service life: Properly designed cellulose insulation systems using HD pressboard routinely exceed 25–30 years of operational life inside sealed oil-immersed transformers.
- CNC fabrication ready: Material machines cleanly — suitable for high-precision spacers, rings, wedges, and shaped components without internal delamination.
Industries and Customers Served
- Power transformer manufacturers — units from distribution class (11 kV, 33 kV) to EHV class (400 kV, 765 kV)
- Distribution transformer manufacturers — high-volume OEMs producing oil-immersed distribution transformers for utility and industrial supply
- Reactor manufacturers — shunt reactors and series reactors used in transmission network VAR compensation
- Instrument transformer manufacturers — current transformers (CT) and voltage transformers (VT) for metering and protection
- Heavy electrical and switchgear equipment manufacturers — special-purpose HV apparatus requiring precision-machined solid insulation components
Why Choose ACC Insulations?
ACC Insulations (Arunoday Composit Corporation) has manufactured electrical insulation materials from Nashik, Maharashtra since 1994 — over three decades of specialised experience in cellulose-based transformer insulation boards and composite insulation products.
- Dedicated insulation expertise: Every product we make is an electrical insulation product. We are not a diversified manufacturer — this specialisation ensures depth of knowledge, consistent quality, and faster problem-solving for OEM customers.
- Batch-level quality documentation: Mechanical, dielectric, and dimensional test data is available for every production batch on request, supporting transformer OEM quality records and audit requirements.
- CNC machining capability: In-house CNC fabrication enables us to supply finished pressboard components — spacers, end rings, barriers, wedges — to OEM drawings, eliminating the need for a separate machining vendor.
- Custom specifications: Non-standard thicknesses, custom sheet dimensions, and density variants are available with engineering support for evaluation and qualification.
- Proven supply chain reliability: Long-term supply relationships with India's largest transformer manufacturers confirm our ability to meet volume, lead-time, and quality requirements consistently.
Engineering Tools Suite
Calculate compression tolerances, oil absorption rates, and load-bearing capacity for high density pressboard insulation systems using our interactive engineering tools.
Frequently Asked Questions
Standard transformer pressboard has a density of approximately 0.9–1.0 g/cm³ and is adequate for general electrical insulation duties. High density pre-compressed pressboard achieves 1.1–1.2 g/cm³ through controlled hydraulic compression, which eliminates internal voids, dramatically improves mechanical strength, and enhances dielectric performance. In power and distribution transformers, this difference is critical — HD pressboard maintains winding geometry and clamping force under short-circuit electromagnetic forces that would deform standard pressboard, directly affecting transformer reliability and fault survivability.
Yes. High density pre-compressed pressboards are specifically designed for high-stress, high-voltage transformer insulation. Their elevated density and void-free pre-compressed structure provide the mechanical rigidity required to withstand electromagnetic forces in power transformers up to 765 kV EHV class. The material also meets the dielectric clearance requirements at these voltage levels when oil-impregnated as part of a designed insulation system.
Yes. ACC Insulations offers in-house CNC machining and fabrication for pressboard components based on transformer OEM drawings and technical specifications. We supply finished spacers, end rings, insulation barriers, wedges, and structural clamping components to tight dimensional tolerances, reducing your procurement complexity. Send us your drawings or specifications and we will provide a detailed quotation.
Yes. Our standard range covers thicknesses from 8 mm to 60 mm. Custom thicknesses beyond this range, non-standard sheet dimensions, and density variants can be produced depending on volume and mechanical requirements. Our engineering team will review your specifications and advise on feasibility, lead time, and qualification testing requirements.
Our high density pre-compressed pressboards comply with IEC 60641-3-1 (Pressboard for electrical purposes), IS 1576 (Indian Standard for transformer-grade pressboard), and IEC 60085 for thermal classification (Class A, 105°C). We also accommodate customer-specific and transformer OEM quality specifications and can provide batch-level test documentation to support your vendor qualification and audit requirements.
Yes. Our high density pre-compressed pressboards are fully compatible with both naphthenic mineral transformer oils and synthetic ester fluids including MIDEL 7131 and FR3. The cellulose material wicks and retains the dielectric fluid uniformly throughout the board thickness, maintaining the dielectric performance of the combined oil-paper insulation system across the transformer's operational life.
