CNC Precision Insulation Manufacturing — Maharashtra, India
Transformer Machined & Milled Insulation Components
Transformer performance depends entirely on precision-engineered insulation components that maintain dielectric strength, dimensional stability, and mechanical integrity under thermal and electrical stress throughout a 30–40 year service life. A tolerance error of even 0.5 mm in a winding spacer or cooling duct former can compromise oil flow, create partial discharge sites, or reduce short-circuit withstand capability — turning a design problem into a field failure.
ACC Insulations manufactures the full range of custom CNC machined and precision milled transformer insulation components for oil-filled, dry-type, power, distribution, instrument transformers, and reactor assemblies — from individual prototype parts to high-volume OEM production runs.
Product Specifications
| Machined & Milled Components — Technical Data | |
|---|---|
| Pressboard Grades (Calendered) | PFCC01, PFCC04, F2, F3, F4 |
| Pressboard Grades (Pre-Compressed) | PFCP02, PFCP03, P2, P3 |
| Sheet Thickness Range | 0.5 mm to 100 mm |
| Standard Sheet Sizes | 1220 × 2440 mm | 1220 × 1220 mm |
| Additional Materials | Densified Laminated Wood (DLW / Permali), Glass Fibre Reinforced Composite (GRP / G10 / G11) |
| Machining Methods | CNC Routing, CNC Milling, Precision Turning, Slitting, Drilling, Tapping |
| Dimensional Accuracy | ±0.1 mm (standard); tighter tolerances on request |
| Surface Finish | Smooth milled / sanded finish; custom surface treatment available |
| Thermal Class | Class B, Class F, Class H — depending on material grade selected |
| Oil Compatibility | Suitable for mineral oil and ester-based dielectric fluids (material-dependent) |
| Standards | IEC 60641, IEC 60893, IEC 60085, IS specifications, customer-specific requirements |
| Supply Capability | Prototype quantities · OEM production runs · Export supply available |
What Are Transformer Machined & Milled Insulation Components?
Transformer machined and milled insulation components are precision-cut, routed, turned, or milled parts produced from high-performance electrical insulation raw materials — primarily pressboard, pre-compressed pressboard, densified laminated wood, and glass fibre composites. Unlike standard cut insulation sheets or rolls, machined components are three-dimensional structural parts with defined tolerances, specific profiles, and functional geometries that perform a precise mechanical and electrical role inside the transformer assembly.
Every dimension on a machined transformer insulation component has a direct functional consequence. A cooling duct spacer that is 0.5 mm narrower than specified reduces oil flow velocity. A winding spacer that is out of round shifts clamping pressure off-centre. A barrier board with a rough milled edge creates a partial discharge initiation site. This is why CNC machining — not manual cutting or sawing — is the required manufacturing method for any component used in a transformer rated above a few hundred kVA.
Why Dimensional Precision Is Critical in Transformer Insulation
In transformer assemblies, every insulation component exists in an exact spatial relationship with conductors, core, oil ducts, and the tank. Even minor dimensional variation propagates into performance impacts that are difficult or impossible to correct after assembly:
Dielectric Strength & Withstand Voltage
Undersized insulation clearances reduce the gap between conductors at different potentials, lowering the impulse and power-frequency withstand voltage below the transformer's specification.
Oil Flow & Cooling Efficiency
Cooling duct formers determine the oil channel width. Even 0.5 mm variation changes hydraulic resistance and flow velocity, directly affecting the transformer's thermal performance and temperature rise rating.
Clamping Pressure Distribution
Winding spacers and press rings must be uniform in height to distribute clamping force evenly across the winding cross-section. Non-uniform pressure causes local mechanical stress concentrations that crack insulation over time.
Winding Alignment & Concentricity
Dimensional inaccuracy in cylindrical insulation components causes LV and HV windings to sit off-centre relative to each other and the core, creating uneven short-circuit electromagnetic forces that risk winding collapse.
Partial Discharge Risk
Rough cut edges, burrs, and dimensional steps in insulation components create electric field stress concentrations — classic partial discharge initiation sites that degrade insulation over time and shorten transformer life.
Short-Circuit Mechanical Integrity
Structural insulation components like clamping rings and press rings must maintain their dimensions under repeated short-circuit loading. Undersized or poorly machined parts deform under SC forces, releasing clamping pressure and accelerating insulation fatigue.
Insulation Components We Manufacture

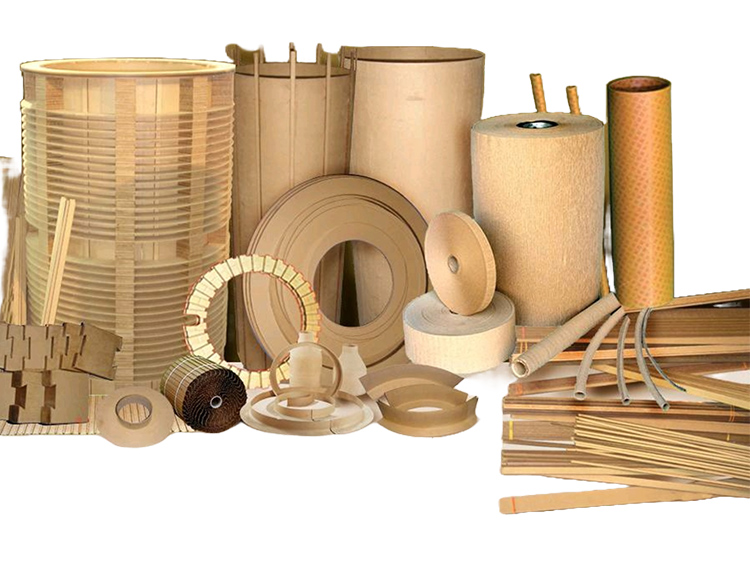

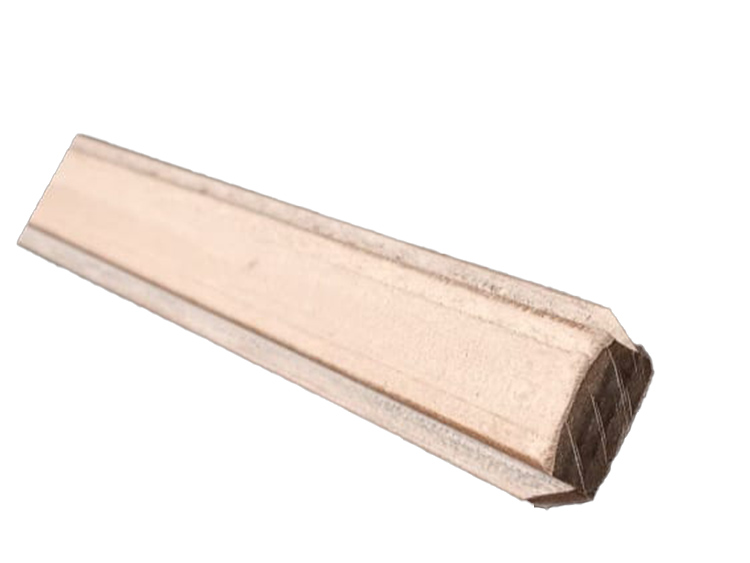

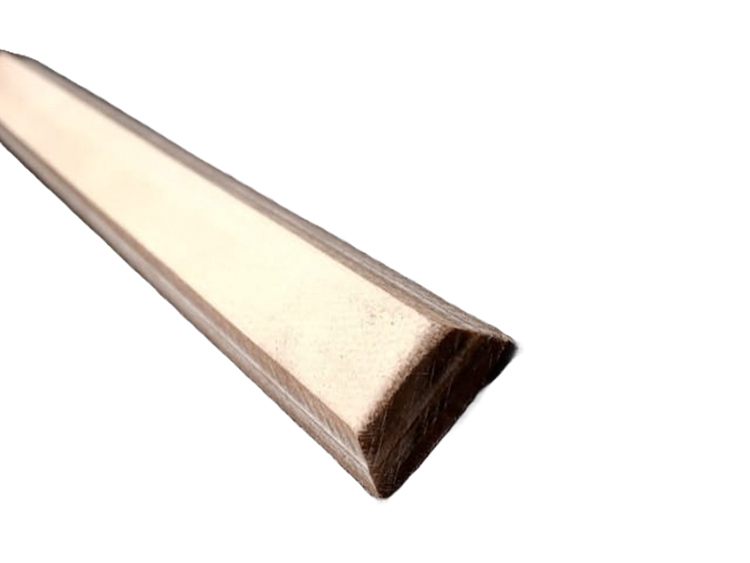

ACC Insulations manufactures the complete range of machined and milled insulation parts required across the full transformer assembly — from core-to-tank barriers to individual winding turn spacers:

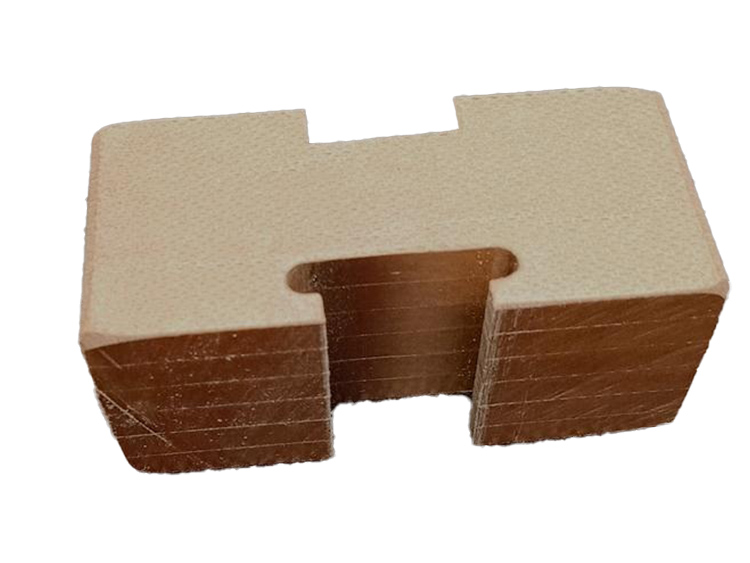

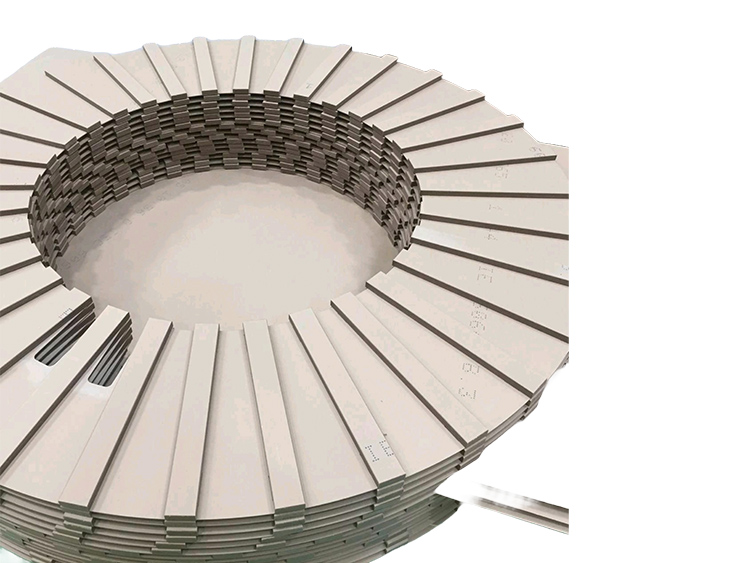

Winding Spacers
Precisely dimensioned blocks and strips placed between winding layers or between disc winding sections to create defined oil flow gaps, maintain conductor spacing, and distribute clamping load. Machined to ±0.1 mm height tolerance.
Insulation Blocks
Solid pressboard or DLW blocks machined to custom profiles for use as end support blocks, core clamp insulation, lead support blocks, and electrical clearance barriers in transformer core-and-coil assemblies.
Phase Separators
Flat or shaped barrier insulation sheets that electrically isolate the three phases of a three-phase transformer assembly, preventing inter-phase flashover and defining creepage distances between phase terminals.

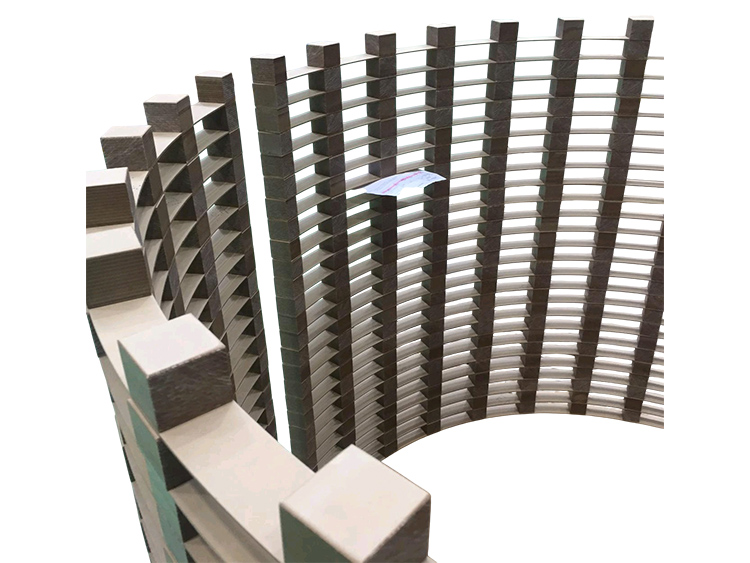

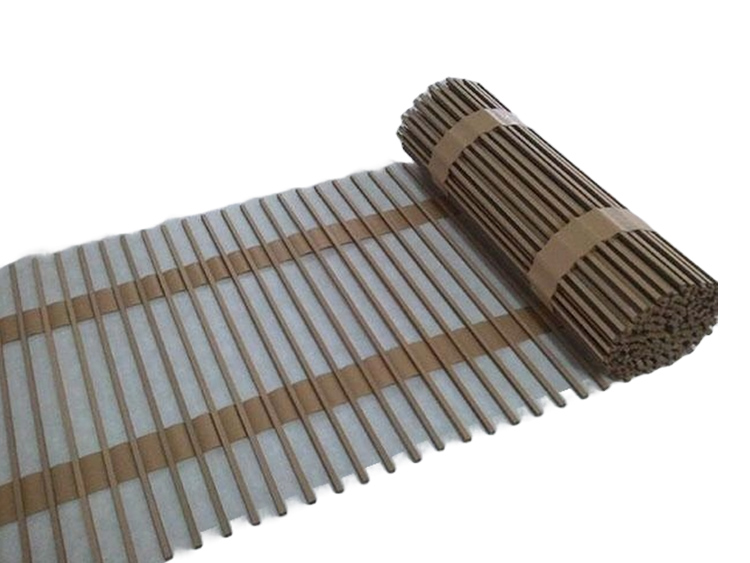

Cooling Duct Formers
Precision-machined spacers that create the oil circulation channels between winding layers and between the winding OD and the tank wall. Duct width is machined to exact specification to meet the transformer's thermal design parameters.
Barrier Boards
Large flat insulation panels placed between the LV and HV winding cylinders, between the winding and core, or between phases — providing the primary electrical insulation barrier and defining the insulation coordination of the transformer.
Press Rings & Clamping Rings
Flat or profiled insulation rings machined from pressboard or DLW that distribute clamping force across the top and bottom of transformer windings, preventing axial displacement under short-circuit forces. Critical for high-MVA transformers.

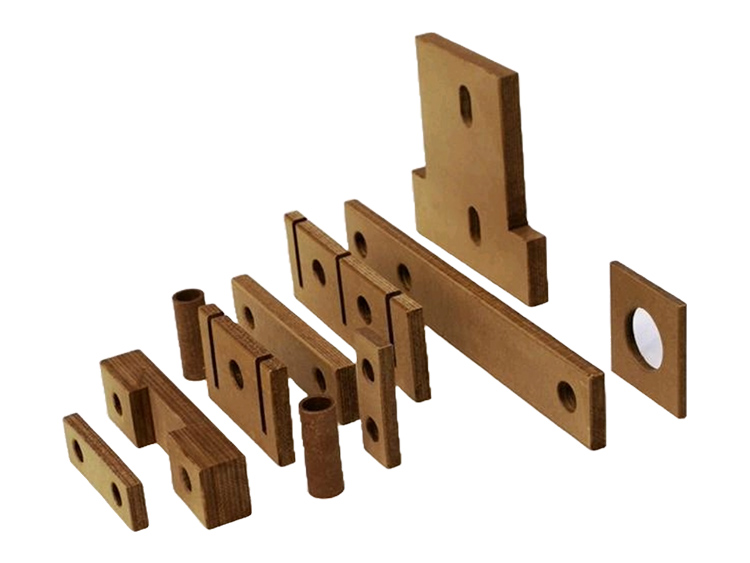

Lead Support Insulators
Custom-profiled pressboard or GRP parts that support, clamp, and route the HV and LV winding leads from the coil to the bushings or tap changer, providing both mechanical support and the required electrical clearances.
Structural Clamping Systems
Integrated assemblies of machined pressboard and DLW components — including clamping frames, side limb insulation, inter-limb barriers, and yoke insulation — that structurally support the transformer core and winding assembly.
Materials Used in Transformer Machined Components
The choice of raw material is the most critical engineering decision for each machined transformer insulation component. ACC Insulations works with four primary material groups, each with specific grades selected based on voltage, mechanical load, operating temperature, and oil compatibility:
| Material | Grades Available | Key Properties | Typical Components |
|---|---|---|---|
| Electrical Grade Pressboard | PFCC01, PFCC04, F2, F3, F4 | High dielectric strength, good oil compatibility, moderate compressibility | Winding spacers, barrier boards, insulation blocks, lead supports |

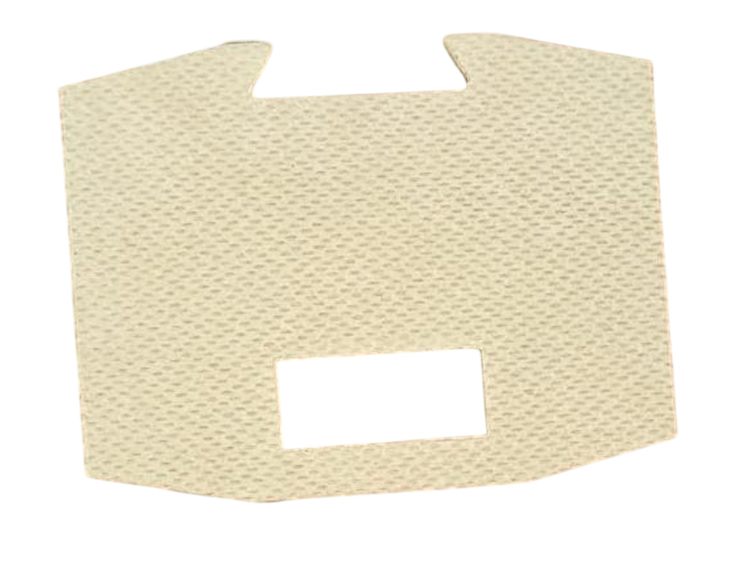

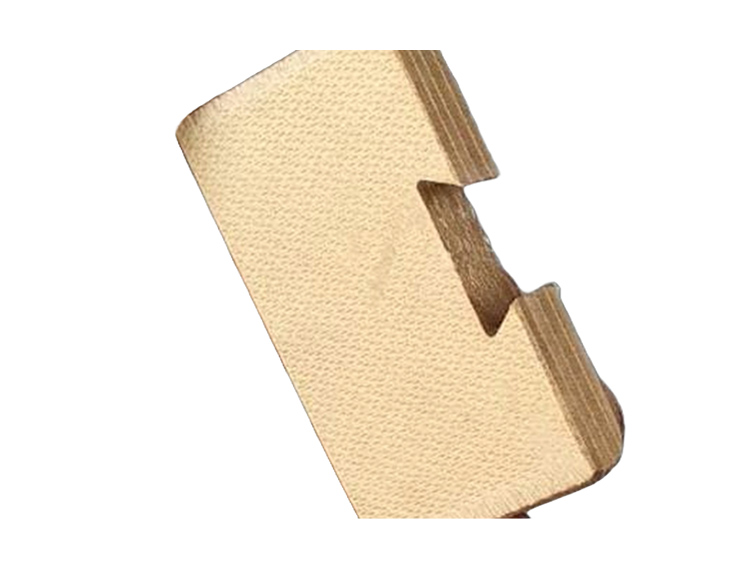

| Pre-Compressed Pressboard | PFCP02, PFCP03, P2, P3 | Low residual compressibility under clamping load, dimensional stability in oil, high density | Press rings, clamping rings, end support blocks, high-load spacers |
| Densified Laminated Wood (DLW) | Electrical grade DLW / Permali | Very high compressive & tensile strength, excellent machinability, good electrical insulation | Clamping frames, yoke beams, core supports, tie bars, structural insulation |
| Glass Fibre Composite (GRP) | G10, G11, FR4, custom grades | High mechanical strength-to-weight ratio, moisture resistance, Class F/H thermal rating | Lead support insulators, HV clearance blocks, bushing-area insulation |
Pressboard Grade Guide: PFCC vs. PFCP — Which to Specify?
The most common material selection question from transformer design engineers is when to specify PFCC (calendered) versus PFCP (pre-compressed) pressboard grades. The answer depends primarily on the clamping load the component will carry in service:
- PFCC grades (PFCC01, PFCC04, F2, F3, F4) are standard calendered pressboard grades. They have moderate compressibility — when clamping force is applied, they compress slightly and conform to the adjacent surfaces. This can be beneficial for load distribution in low-to-medium MVA windings, but it means the winding axial height will reduce slightly during initial clamping and during the first thermal cycles in oil. Best for winding spacers, barrier boards, and insulation blocks where controlled compression is acceptable.
- PFCP grades (PFCP02, PFCP03, P2, P3) are mechanically pre-compressed during manufacture to reduce their residual compressibility to near zero. This means the component maintains its designed dimension under clamping load throughout the transformer's service life. Essential for press rings, clamping rings, end support blocks, and any component where dimensional change under load would release winding preload pressure — which would allow winding movement under short-circuit forces.
Thickness Range: 0.5 mm to 100 mm
ACC Insulations machines transformer insulation components across the full thickness range used in transformer design — from thin inter-layer barriers to massive structural blocks:
Our CNC Machining & Milling Process
Every transformer insulation component ACC Insulations produces follows a disciplined manufacturing sequence that begins with engineering review and ends with dimensional verification — ensuring zero surprises when the component reaches your winding shop:
Drawing Review & Material Selection
Customer CAD drawings or engineering sketches are reviewed by our technical team. Material grade, machining method, tolerance requirements, and surface finish are confirmed before production is scheduled. We advise on material upgrades where the drawing specification may be under- or over-specified for the application.
Raw Material Incoming Inspection
Pressboard sheets, DLW planks, and composite panels are inspected on receipt for thickness uniformity, moisture content, surface defects, and grade conformance. Only materials passing incoming inspection are released to the production floor.
CNC Programming & Toolpath Generation
Component geometry is programmed into the CNC controller from the customer drawing. Toolpath, cutting speed, feed rate, and depth-of-cut are optimised for the specific material grade to achieve the required dimensional accuracy without delamination, edge chipping, or thermal damage to the insulation material.
CNC Machining — Routing, Milling, Turning
Components are machined on CNC routing, milling, or turning centres as appropriate to their geometry. Multi-axis machining allows complex profiles — stepped bores, tapered edges, T-slots, counterbores, and compound radii — to be produced in a single setup, maintaining positional accuracy across all features.
Edge Dressing & Surface Finishing
All machined edges are dressed to remove burrs, chipping, and tool marks. Edges adjacent to high-voltage conductors or insulation surfaces are rounded to eliminate electric field stress concentrations — a critical step that prevents partial discharge initiation at insulation edges.
Dimensional Inspection & Quality Sign-Off
All critical dimensions are verified against the drawing using calibrated measuring instruments — micrometers, height gauges, radius gauges, and coordinate measuring equipment as required. Components outside tolerance are rejected. Inspection records are retained for traceability.
Packaging & Dispatch
Finished components are individually or batch-packed in moisture-protected packaging to prevent absorption during storage and transportation. Export-ready packaging with appropriate customs documentation is available for international supply.
Applications — Transformer Types Served
Quality Assurance & Standards
Every machined transformer insulation component from ACC Insulations is produced and verified under a documented quality system to ensure it meets both dimensional and electrical performance requirements:
- Raw material certification — pressboard, DLW, and composite materials sourced to IEC 60641, IEC 60893, and IS specifications; material certificates provided on request
- Dimensional inspection — all critical dimensions checked against customer drawing tolerances using calibrated instruments; first-article and in-process inspection records retained
- Visual & surface quality audit — inspection for delamination, edge chipping, burrs, surface voids, and tool marks that could create partial discharge sites
- Dielectric verification — where specified by customer, machined components are spot-checked for dielectric strength per IEC 60641 requirements
- Thermal class confirmation — material grade verified against rated thermal class (Class B / F / H) as per IEC 60085
- Traceability — batch records link each shipment to the raw material lot, production date, and inspection results
Export Supply Capabilities
ACC Insulations supplies transformer machined insulation components to OEM manufacturers not only across India but also to international customers in the Middle East, Africa, South-East Asia, and Europe. Our export supply capability includes:
- Export-ready moisture-protected packaging — PE-film and carton packaging rated for sea-freight conditions
- Flexible order quantities — prototype sample quantities through to full-production OEM volumes
- Customs documentation — commercial invoice, packing list, certificate of origin, and material test certificates as required
- Lead time management — flexible production scheduling to align with customer project timelines
Why Choose ACC Insulations for Transformer Machined Components?
Specialist Manufacturer
We manufacture only electrical insulation products — not a general engineering shop. Every CNC operator and quality inspector understands the specific requirements of transformer insulation components.
True CAD-to-Part Capability
We work directly from your CAD drawings, DXF files, or engineering sketches. Complex profiles, stepped dimensions, compound angles, and non-standard geometries are all within our CNC machining capability.
Full Material Range
Nine pressboard grades, DLW, and glass fibre composites — all available from a single supplier. No need to source different materials from multiple vendors and manage separate quality approvals.
IEC & IS Compliant
Raw materials and finished components meet IEC 60641, IEC 60893, IEC 60085, and relevant IS standards. Full documentation provided on request.
Export Experience
Proven export packaging, customs documentation, and supply chain experience for international transformer OEM customers across multiple countries.
Engineering Collaboration
Our team actively supports your transformer design process — advising on material grade selection, tolerance optimisation, and manufacturing feasibility before you commit to final drawings.
Engineering Tools Suite
Calculate exact dielectric clearances, cooling duct width requirements, clamping load tolerances, and material grade selection parameters for your transformer insulation component design using our interactive engineering tools.
Frequently Asked Questions
We machine transformer insulation components from four material groups: electrical grade pressboard (PFCC01, PFCC04, F2, F3, F4) for general insulation components; pre-compressed pressboard (PFCP02, PFCP03, P2, P3) for mechanically loaded components like press rings; densified laminated wood (DLW/Permali) for structural components like clamping frames and yoke beams; and glass fibre reinforced composite (G10, G11, FR4) for high-strength, moisture-resistant components in high-voltage and elevated-temperature applications. Material selection is based on mechanical load, operating voltage, thermal class, and oil compatibility requirements.
PFCC grades (PFCC01, PFCC04, F2, F3, F4) are calendered (standard) pressboard with moderate compressibility — they compress slightly under clamping load. This is acceptable for winding spacers and barrier boards, but can cause winding axial height reduction during clamping. PFCP grades (PFCP02, PFCP03, P2, P3) are pre-compressed — mechanically compressed during manufacture to near-zero residual compressibility. This means they maintain their exact dimension under long-term clamping load in oil, which is essential for press rings, clamping rings, and any component where dimensional change under load would release winding preload and allow movement under short-circuit forces.
Yes. We produce transformer insulation components directly from customer-supplied CAD drawings (DWG, DXF, STEP), engineering sketches, or sample parts. Our CNC routing, milling, and turning equipment handles complex profiles including stepped bores, compound radii, tapered edges, slots, and holes. We supply prototype quantities for transformer design validation and full production volumes for OEM requirements. All components are dimensionally inspected against drawing tolerances before dispatch.
A cooling duct former (also called an oil duct spacer or winding spacer) is a machined insulation block that creates a defined gap between transformer winding layers or between the winding outer diameter and the tank wall, through which transformer oil circulates to carry heat away from the conductors. The specified duct width directly determines oil flow velocity and cooling efficiency. A duct that is even 0.5 mm narrower than designed significantly increases the hydraulic resistance of the oil circuit, raising the conductor temperature above the rated thermal class — potentially causing premature insulation ageing. This is why CNC machining to tight tolerances, not hand cutting, is mandatory for cooling duct formers.
We machine pressboard and composite insulation materials from 0.5 mm up to 100 mm thickness. Standard input sheet sizes are 1220 × 2440 mm and 1220 × 1220 mm. Thin components (0.5–5 mm) are typically die-cut or slit; medium and heavy sections (5–100 mm) are CNC routed or milled to profile. For components requiring thickness greater than the available single-sheet capacity, we can produce laminated-and-bonded builds. Custom sizes within material limits are available on request.
Our machined transformer insulation components are used in power transformers (transmission and GSS), distribution transformers, dry-type transformers, instrument transformers (CTs, VTs), reactor assemblies, traction transformers, furnace transformers, solar and wind renewable energy step-up transformers, and industrial special-purpose transformers. The complete range of component types — from inter-layer winding spacers to large structural clamping frames — covers every machined insulation requirement in the transformer assembly.
Yes. All raw materials are sourced to IEC 60641 (pressboard and paper for electrical purposes), IEC 60893 (thermosetting laminates), and IEC 60085 (thermal classification) as applicable. Finished machined components are dimensionally inspected against drawing tolerances and dielectric performance is verified to meet the requirements of the transformer design. Raw material certificates and dimensional inspection records are available on request for each order.
