Filament Wound FRP Cylinders & Pultruded Profiles

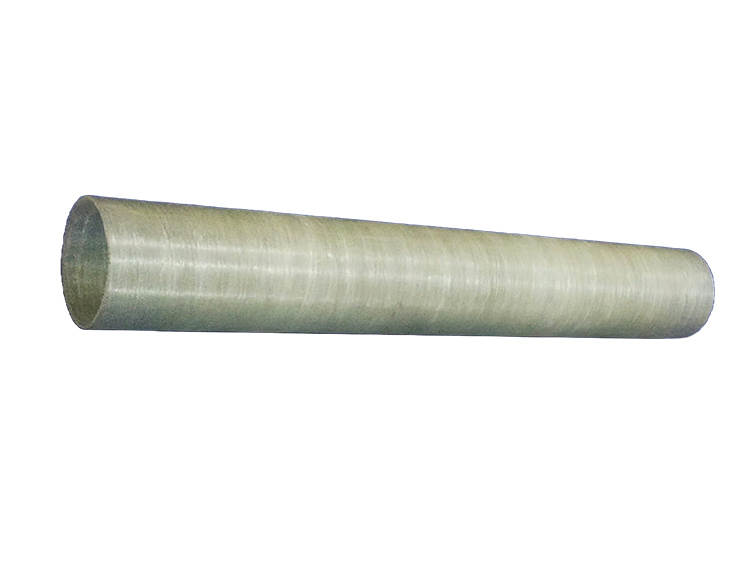

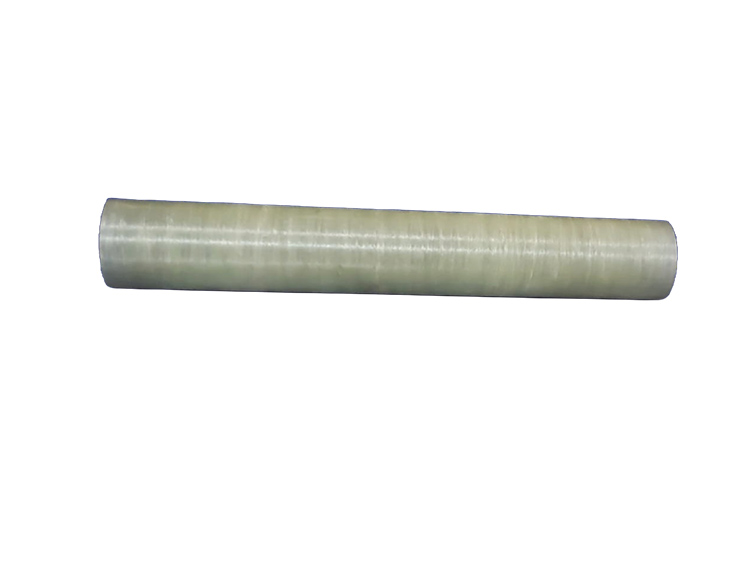

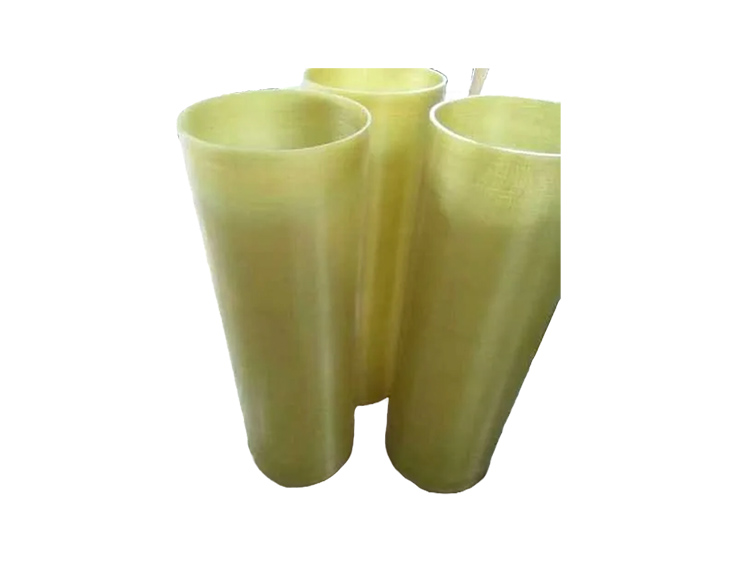

FRP (Fiberglass Reinforced Plastic) Cylinders — also called GRP winding cylinders or epoxy glass tubes — deliver critical structural insulation in high-voltage transformer windings, vacuum circuit breakers, and switchgear assemblies. ACC Insulations manufactures filament wound FRP cylinders at our MIDC Ambad, Nashik facility for OEMs across India, achieving a void-free composite matrix, tight CNC tolerances, and proven dielectric reliability from Class B to Class H thermal ratings.
Continuous Filament Winding Process
E-glass rovings get deeply impregnated with electrical-grade epoxy, vinylester, or polyester resin and wound over a precision-machined rotating steel mandrel under computer-controlled tension. Result: zero internal voids, maximum fibre-volume fraction, and hoop strength far beyond conventional insulation tubes. Post-wind, cylinders cure in calibrated ovens ensuring complete matrix cross-linking and stable glass transition temperature (Tg).
- IEC 60893 Compliant
- IS Standard Certified
- In-House CNC Machining
- 100% Batch Tested
| Technical Specifications & Material Data | |
|---|---|
| Reinforcement | Continuous E-glass roving, glass mat, woven fabric, and chopped strand tissue — selected per mechanical and dielectric load requirements. |
| Resin Matrix | Epoxy (Class F/H — best dielectric & Tg), Vinylester (chemical-resistant, moisture-stable), Polyester (Class B/E — cost-optimised). All electrical-grade thermosetting formulations. |
| Product Range | Filament wound (FW) epoxy glass cylinders, CNC-machined tubular components, pultruded FRP rods, tubes, and structural sections. |
| Dimensional Range |
FW Cylinders: Up to 200 mm OD × 1,000 mm length
(custom sizes available). Pultruded Profiles: Up to 80 mm diameter / square sections. CNC Tolerance: ±0.05 mm on ID, OD, threads, and grooves. |
| Thermal Class | Class B (130°C), Class F (155°C), Class H (180°C) — resin system selected to match operating temperature and voltage class. |
| Testing | 100% batch testing: dielectric breakdown voltage, glass transition temperature (Tg), wall thickness uniformity, and dimensional precision per IEC 60893 and IS standards. |
How Filament Wound FRP Cylinders Are Made
- Mandrel Preparation. Precision-machined steel mandrel cleaned and coated with release agent to exact target ID.
- Resin Impregnation. Continuous E-glass rovings pulled through resin bath (epoxy/vinylester/polyester) at controlled tension and speed.
- Filament Winding. Computer-controlled winding head lays roving at optimised helix and hoop angles — maximising both hoop strength and axial rigidity.
- Curing. Wound cylinder cures in calibrated oven at defined temperature ramp profile ensuring full matrix cross-linking and target Tg.
- Mandrel Extraction. Cured tube released from mandrel, yielding a void-free, dimensionally stable FRP cylinder.
- CNC Machining. In-house CNC turning/milling executes threads, flanges, slots, grooves, and drilled holes to OEM CAD drawings at ±0.05 mm.
- Quality Inspection. Dielectric breakdown, Tg measurement, wall thickness, and dimensional audit on every batch before dispatch.
Advanced Performance Properties
- Exceptional Hoop Strength: Helical and circumferential winding angles deliver high burst pressure resistance and radial load capacity in transformer winding stacks.
- Void-Free Matrix: Zero internal air pockets eliminate partial discharge (corona) inception — critical in oil-immersed and dry-type transformer windings above 11 kV.
- High Dielectric Strength: Electrical breakdown voltage exceeds requirements for Class B to Class H insulation systems, validated per IEC 60243.
- Lightweight & Shatterproof: Density of ~1.8–2.0 g/cm³ vs porcelain at ~2.4 g/cm³. Fully impact-resistant — no breakage during transit or field assembly.
- Non-Magnetic & Non-Conductive: Zero electromagnetic interference with winding fields. No grounding hardware needed.
- Corrosion & Moisture Resistant: Vinylester grades absorb <0.3% moisture — ideal for humid or coastal transformer installations.
- Dimensional Stability: Low thermal expansion coefficient maintains press-fit tolerances across –20°C to +180°C service range.
FRP Cylinders vs Porcelain vs Metal — Comparison
Porcelain
- Brittle — shatters on impact
- Heavy — 2.4 g/cm³
- No custom machining
- Long lead times
FRP Cylinder (ACC)
- Shatterproof composite
- Lightweight — 1.8–2.0 g/cm³
- CNC to ±0.05 mm
- Native dielectric insulation
- IEC / IS compliant
Metal Tube
- Conducts electricity
- Magnetic interference
- Rusts without treatment
- Requires grounding
Industrial Applications — Heavy Electrical Sector
- Power & Distribution Transformers: Winding cylinders (LV/HV), inter-winding barriers, tap changer insulation housings, and pressboard-composite assemblies up to 400 kV class.
- Vacuum Circuit Breakers (VCBs): Insulating poles, arc quenching chambers, and contact rod guides requiring tight dimensional accuracy and high tracking resistance.
- On-Load Tap Changers (OLTC): Selector switch barrels and diverter switch housings needing oil-resistant, dimensionally stable epoxy glass cylinders.
- Switchgear & Medium Voltage Panels: Phase barriers, bus bar supports, standoff insulators, and non-conductive structural spigots.
- High Voltage Bushings: Condenser bushing cores with controlled permittivity gradient.
- Radomes & Antenna Housings: RF-transparent fiberglass cylinders for radar, telecom, and defence microwave applications.
- Industrial Machinery: Corrosion-proof, non-magnetic structural tubes in chemical plants, paper mills, and offshore equipment.
Pultruded FRP Profiles — Structural & Electrical

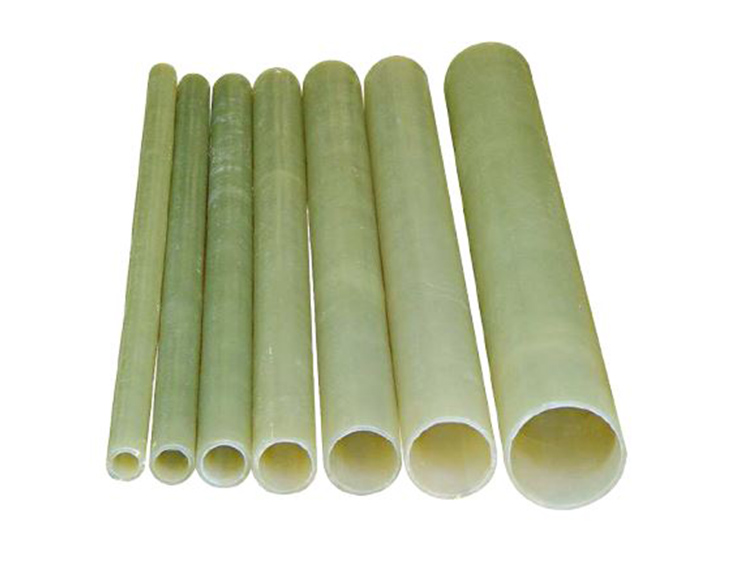

Alongside filament wound cylinders, ACC Insulations manufactures pultruded FRP sections — rods, tubes, flat bars, angles, and custom profiles up to 80 mm across. Pultrusion delivers a higher unidirectional tensile strength vs winding, making pultruded profiles ideal for bus bar supports, insulating rods, phase spacers, and structural standoffs where axial load dominates over hoop stress. Resin options match those for filament wound products — epoxy, vinylester, or polyester — with Class B to Class H thermal ratings.
Quality, Compliance & Testing
- Manufactured per IEC 60893 (industrial laminated sheets, rods, and tubes) and IEC 60243 (dielectric strength testing methods).
- Compliant with relevant BIS / IS specifications for Indian power sector procurement by PGCIL, SEBs, and private utilities.
- 100% batch testing: AC dielectric breakdown voltage, glass transition temperature (Tg) by DSC, wall thickness uniformity by ultrasonic gauging, ID/OD/length by CMM.
- Material traceability: resin batch certificates and glass fabric mill test reports archived per order for full supply chain audit compliance.
Why ACC Insulations — India's Trusted FRP Cylinder Supplier
30+ years supplying filament wound FRP cylinders and pultruded profiles to India's leading transformer OEMs, switchgear manufacturers, and EPC contractors. Rapid prototyping, high-volume production capability, and in-house CNC machining eliminate multi-vendor complexity. Single-source accountability from raw glass to finished machined component — with traceable batch records and IEC-compliant test documentation on every order.
Engineering Tools Suite
Calculate exact hoop strength, dimensional tolerances, and dielectric strength margins for custom FRP cylinders and pultruded profiles using our interactive engineering tools.
Frequently Asked Questions
FRP cylinders serve as core insulating components in power transformers (winding cylinders, tap changer housings), vacuum circuit breakers (VCBs), switchgear panels, and on-load tap changers (OLTC). RF-transparency makes them effective as radomes and microwave antenna housings too. Any application demanding high dielectric strength, structural rigidity, and zero magnetic interference benefits from filament wound FRP cylinders.
Continuous E-glass rovings pass through an electrical-grade resin bath (epoxy or vinylester) and wind over a rotating steel mandrel under computer-controlled tension and angle. Void-free fibre packing achieved by precise tension management. Post-winding, cylinders cure in calibrated ovens at programmed temperature ramps — ensuring full resin cross-linking, stable glass transition temperature (Tg), and consistent hoop strength batch-to-batch.
FRP cylinders outperform porcelain in impact resistance (fully shatterproof), weight (20–25% lighter), and dimensional flexibility. Versus metal, FRP delivers native non-conductive, non-magnetic, corrosion-free performance — no grounding hardware, no eddy current losses, no rust. For high-voltage transformer windings, switchgear poles, and VCB insulation above 11 kV, filament wound epoxy glass cylinders represent the optimal material choice.
Custom inner diameter (ID), outer diameter (OD), and length available across our full product range. In-house CNC machining executes threads (metric and BSP), circumferential grooves, longitudinal slots, stepped bores, and drilled hole patterns to ±0.05 mm tolerance — directly from OEM CAD/DXF drawings. Prototype articles available for first-article inspection before volume production.
Epoxy resin: Best choice for Class F/H (155–180°C) transformer windings requiring maximum dielectric strength, lowest water absorption, and highest Tg. Vinylester resin: Optimal where chemical resistance and moisture stability matter — humid environments, coastal substations. Polyester resin: Cost-optimised for Class B/E (130°C) applications with standard mechanical and dielectric requirements. Share your transformer rating, voltage class, and ambient conditions — ACC Insulations recommends the correct resin system.
Manufactured per IEC 60893 (industrial laminated cylinders and tubes), IEC 60243 (dielectric breakdown testing), and relevant IS/BIS specifications for the Indian power sector. Every batch undergoes dielectric breakdown voltage testing, Tg measurement by DSC, wall thickness verification by ultrasonic gauge, and dimensional audit by CMM. Full material traceability documents provided on request for PGCIL, SEB, and export procurement approvals.
