Mica Tape & Mica Insulation
Mica tape — also supplied as mica insulation tape, mica winding tape, or mica ground wall insulation — is the industry-standard electrical insulation material for stator winding ground wall insulation in motors, generators, traction motors, and EV drive systems. It consists of high-purity mica paper (split from natural phlogopite or muscovite mica) laminated to a reinforcing backing of E-glass fibre cloth or polyester film using a heat-resistant epoxy or silicone resin binder.
When applied to stator coils and cured during vacuum pressure impregnation (VPI), the mica tape system forms a void-free, high-dielectric-strength ground wall that protects against phase-to-ground fault, partial discharge, moisture ingress, and mechanical vibration — across the complete rated service life of the machine. ACC Insulations is a distributor and supplier of electrical grade mica tape to motor and generator OEMs across India.
Technical Specifications
| Mica Tape — Full Technical Data | |
|---|---|
| Product Name | Mica Tape — Electrical Grade (GMICA / PMICA) |
| Mica Type | Phlogopite (Class H) | Muscovite (Class F) |
| Backing Material | E-Glass Fibre Cloth (GMICA) | Polyester Film / PET (PMICA) |
| Binder Resin | Heat-resistant Epoxy Resin (standard) / Silicone Resin (high-temp grades) |
| Standard Thickness | 0.10 mm – 0.20 mm (grade and construction dependent) |
| Mica Content | ≥ 80% by weight |
| Thermal Class | Class F (155°C) — Muscovite | Class H (180°C) — Phlogopite |
| Dielectric Strength | ≥ 50 kV/mm (cured laminate, IEC 60371-2) |
| Colour | Silver-grey (muscovite) / Amber-brown (phlogopite) |
| Standard Tape Widths | 19 mm, 25 mm, 30 mm, 38 mm, 50 mm — custom widths available |
| Impregnation System | VPI (Vacuum Pressure Impregnation) compatible; resin-rich grades also available |
| Applications | Motor stator ground wall, generator coil insulation, EV traction motor windings |
| Standards | IEC 60371-2, IEC 60371-3, IEC 60085, IEC 60034-1 |
What Is Mica Tape?
Mica tape is a laminated electrical insulation material produced by bonding a layer of mica paper — manufactured from beneficiated and delaminated natural mica — onto a reinforcing substrate of woven E-glass fibre cloth or polyester film using a resin binder. The resulting composite tape combines the unique electrical and thermal properties of mica with the mechanical strength of the backing material.
The defining electrical property of mica is its resistance to partial discharge (PD) erosion. Unlike organic insulation materials — which are destroyed by partial discharge activity over time — mica is inherently inorganic and highly resistant to the electron bombardment, UV radiation, ozone, and nitric acid generated by PD. This makes mica tape the only insulation material capable of providing long-term ground wall insulation reliability in high-voltage rotating machines subject to partial discharge.
Mica Tape Construction — Layer by Layer
Every mica tape roll is a precisely engineered laminate. Understanding the layer structure is essential to specifying the correct grade for your application:

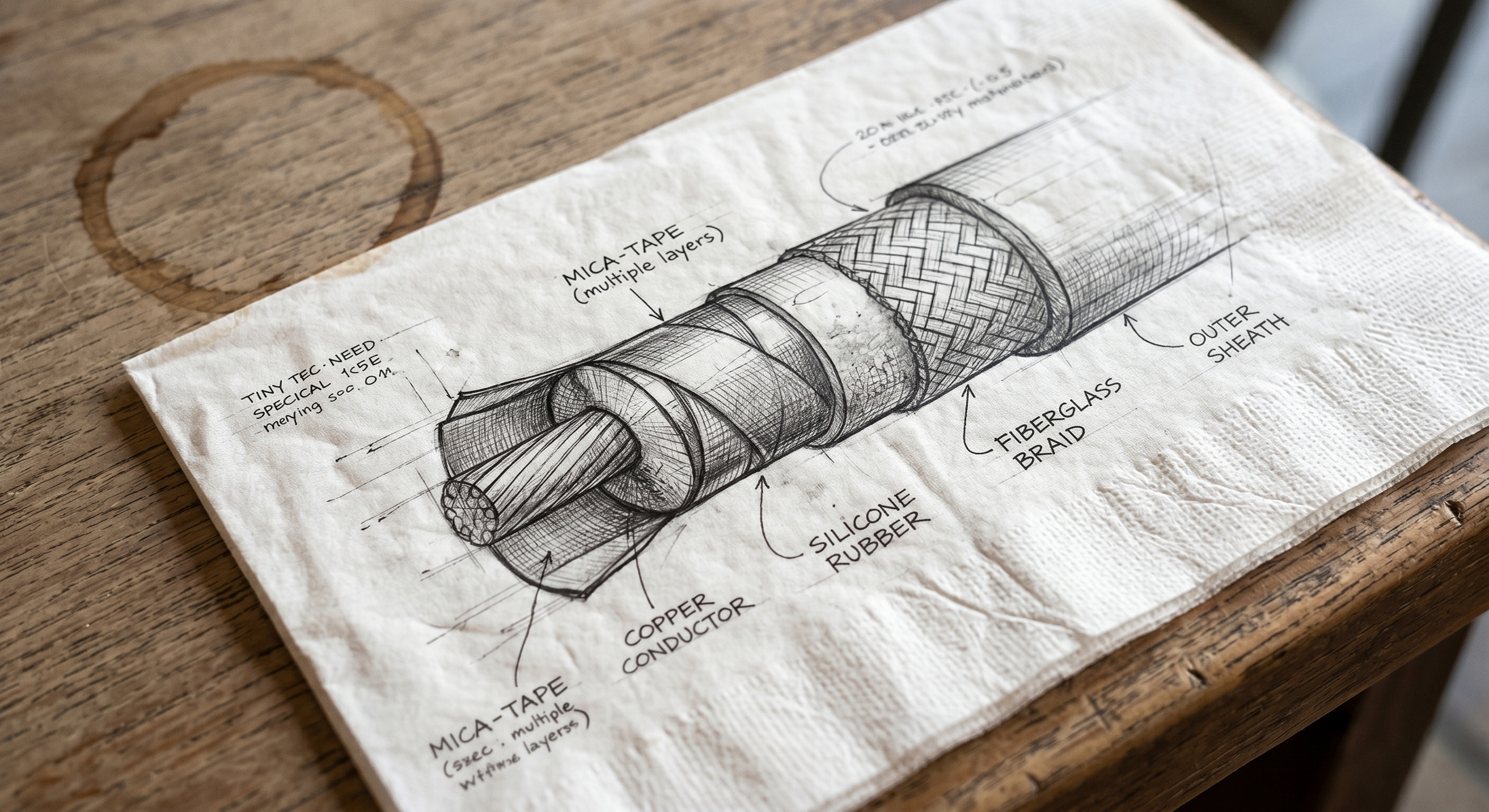

Mica Tape — Cross-Section
Glass cloth or polyester film backing · Mica paper core · Epoxy/silicone resin binder
- Backing layer (glass fibre cloth or polyester film): Provides tensile strength for machine-wrapping on winding equipment and dimensional stability during the VPI cycle. Glass cloth backing supports higher temperatures (Class H) and provides stronger post-cure bond to the coil surface. Polyester film backing gives greater flexibility and conformability for complex coil geometries at Class F temperatures.
- Mica paper core: The primary insulating layer. Manufactured by delaminating and reconstituting natural mica mineral into a uniform paper form — retaining all the dielectric, thermal, and PD-resistant properties of natural mica crystal. Phlogopite mica paper is used for Class H; muscovite mica paper for Class F applications.
- Resin binder system: Bonds the mica paper to the backing and, during VPI impregnation, cures to consolidate the entire ground wall insulation into a void-free rigid laminate. Standard grades use epoxy binder (VPI compatible); resin-rich grades contain pre-impregnated resin for systems where separate VPI is not available.
Mica Grade Selection — Phlogopite vs. Muscovite
The choice of mica mineral type is the most critical specification decision in mica tape selection. Each grade has distinct thermal and electrical characteristics that determine its suitability for your application:
High-Temperature & EV Grade
Thermally stable to 800°C. The correct specification for Class H motors, EV traction motors, traction generators, and all applications requiring the highest thermal endurance. Superior chemical resistance. Amber-brown in colour.
Standard Industrial Grade
Higher dielectric strength and lower dielectric loss compared to phlogopite at standard operating temperatures. The industry standard specification for Class F industrial motors, generators, and transformers. Silver-grey in colour.
How Mica Tape Works in Motor Winding Insulation
The mica tape insulation system progresses through distinct stages from application to service — each stage critical to achieving the final electrical and mechanical performance of the ground wall:
Coil Wrapping — Manual or Machine Application
Mica tape is applied to the prepared copper conductors of the stator coil in a controlled half-lap or butt-lap wrap pattern on a coil wrapping machine. Multiple layers are applied to achieve the required ground wall thickness — determined by the rated voltage of the machine. The binder resin remains uncured and the tape is flexible at this stage.
Coil Forming & Consolidation
The wrapped coil is pressed in a heated die or hydraulic press to consolidate the mica tape layers, expel excess binder resin, and form the coil to the exact dimensions required for fitting in the stator slot. This step ensures consistent ground wall thickness and eliminates interlaminar voids before impregnation.
VPI Impregnation — Void Elimination
The formed coils (or the complete wound stator in global VPI) are placed in a vacuum-pressure impregnation vessel. Under deep vacuum, residual air and moisture are removed from all voids within the mica tape ground wall. Then, the impregnating resin — typically epoxy or polyester varnish — is admitted under positive pressure, completely filling all voids and interlaminar gaps between mica layers.
Curing — Ground Wall Consolidation
The impregnated coil or stator is baked in an oven at the curing temperature of the impregnating resin system (typically 130°C–160°C for 8–16 hours). The resin cross-links, permanently bonding all mica layers, the backing, and the copper conductors into a single rigid, void-free composite ground wall with rated dielectric strength.
Service — Partial Discharge Resistance for Machine Life
In service, the cured mica ground wall provides the rated dielectric withstand between the copper conductor and the stator core throughout the machine's operating life — including voltage surges from inverter drives. The inherent PD resistance of mica ensures that any partial discharge activity that occurs within sub-threshold voids does not erode the insulation, unlike organic materials.
Key Performance Properties
Why Mica Tape Is Critical for Motors, Generators & EVs
The shift to variable frequency drive (VFD) control and EV inverter-fed traction motors has dramatically increased the electrical stress on stator winding insulation — making mica tape more important than ever in modern machine design:
- Inverter voltage spikes and partial discharge: Modern PWM inverters generate high-frequency voltage pulses with steep rise times that create over-voltages at the motor terminals — often 2–4 times the rated phase voltage. These over-voltages drive partial discharge in any void within the ground wall insulation. Organic insulation is rapidly eroded by PD; mica resists PD erosion indefinitely, making mica tape the only reliable ground wall insulation for inverter-duty and EV traction motors.
- EV traction motor thermal demands: EV traction motors are designed for high power density in a compact envelope, driving continuous winding temperatures to the Class H limit (180°C) and above during peak torque transients. Phlogopite mica tape retains full dielectric performance at these temperatures, unlike organic insulation systems that begin to degrade at sustained Class H operating temperatures.
- Phase-to-ground fault prevention: Ground wall breakdown — failure of insulation between the copper conductor and the earthed stator core — results in a direct phase-to-ground short circuit that destroys the machine. The cured mica tape ground wall, when correctly specified and impregnated, provides a continuous, void-free dielectric barrier with proven 20+ year service life under rated operating conditions.
- Flame resistance in safety-critical applications: Mica is a non-combustible inorganic mineral. In the event of an insulation failure event or fire, the mica tape ground wall does not propagate combustion — a critical property for traction motors in rolling stock, EV battery-adjacent drive systems, and generator windings in power stations where fire spread must be minimised.
- Mechanical endurance under vibration: The cured mica tape composite ground wall, fully impregnated and bonded to the stator slot surface, resists the mechanical vibration and fretting forces generated by electromagnetic forces in the stator slot during normal operation — preventing abrasion of the ground wall insulation against the slot wall that would otherwise degrade organic insulation systems over time.
Applications of Mica Tape

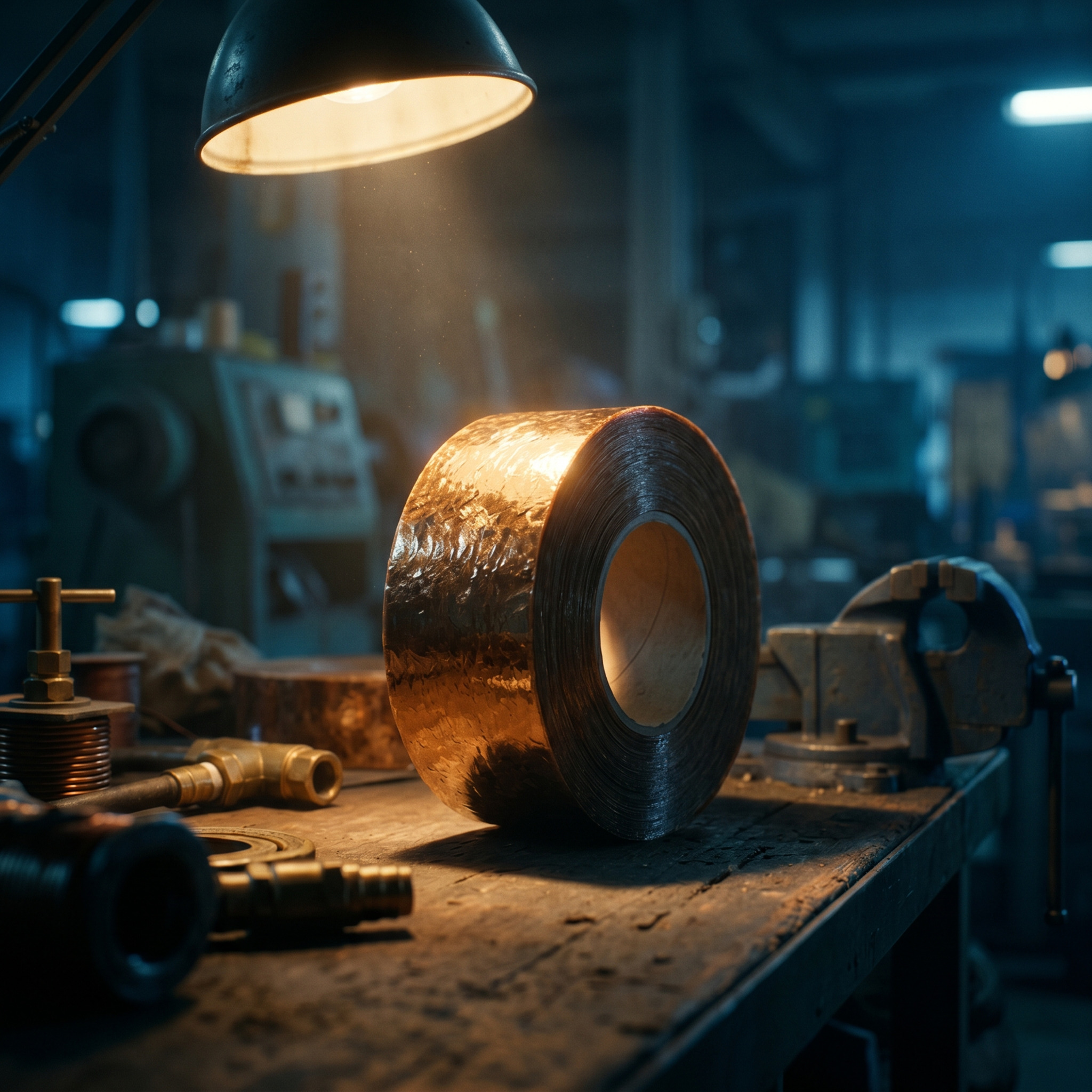

Mica Tape Grades — GMICA vs. PMICA
ACC Insulations supplies both glass-backed (GMICA) and polyester-backed (PMICA) mica tape. Here is a direct technical comparison to guide grade selection:
| Property | GMICA (Glass-Backed) | PMICA (Polyester-Backed) |
|---|---|---|
| Backing material | E-glass fibre woven cloth | Polyester (PET) film |
| Thermal class | ✓ Class F & Class H available | Class F (155°C) only |
| Flexibility | Moderate | ✓ High — conforms to complex shapes |
| Tensile strength | ✓ High — glass fibre reinforced | Moderate |
| Post-VPI bond strength | ✓ Excellent — glass bonds strongly with epoxy resin | Good |
| Surface finish | Textured (cloth surface) | ✓ Smooth (film surface) |
| Best for | HV motors, generators, EV traction, turbo-generators | LV motors, compact coils, form-wound coils |
| EV traction motor rated | ✓ Yes (phlogopite + glass) | ✗ Not recommended |
Why Choose ACC Insulations for Mica Tape?
Established Insulation Distributor
30+ years supplying electrical insulation materials to motor, generator, and transformer OEMs across India — mica tape is part of our complete winding insulation supply portfolio.
Custom Widths & Roll Lengths
In-house precision slitting equipment cuts mica tape to any custom width required by your winding machine — 19 mm, 25 mm, 38 mm, 50 mm, or any custom specification.
IEC 60371 Compliant
All mica tape meets IEC 60371-2 and IEC 60371-3 requirements. Batch test certificates and material traceability documentation available on request.
EV Motor Application Support
Our team advises on phlogopite grade selection, tape thickness, wrap pattern, and VPI compatibility for EV traction motor insulation systems.
Reliable Stock & Delivery
Consistent inventory of standard grades ensures on-time supply to motor winding shops and OEM production lines across Maharashtra and pan-India.
Technical Application Support
Our engineers advise on mica grade selection, thermal class compliance, VPI process compatibility, and complete ground wall insulation system design for your specific motor specification.
Engineering Tools Suite
Use our insulation finder and dielectric clearance calculators to verify mica tape grade selection, ground wall thickness, thermal class compliance, and VPI system compatibility for your motor or generator winding design.
Frequently Asked Questions
Mica tape is a flexible electrical insulation laminate made from mica paper bonded to a glass fibre or polyester backing using a heat-resistant resin. It is machine-wrapped around stator coils in multiple layers to form the ground wall insulation. During vacuum pressure impregnation (VPI) and oven curing, the resin consolidates the layers into a rigid, void-free insulation system with high dielectric strength and lifelong resistance to partial discharge erosion — providing the rated phase-to-ground insulation throughout the motor's service life.
Phlogopite (brown mica) is the high-temperature grade — stable to 800°C, specified for Class H (180°C) applications including EV traction motors and high-voltage industrial motors. Muscovite (silver mica) has superior dielectric properties at Class F temperatures (155°C) and lower dielectric loss, making it the standard choice for most industrial motors and generators at Class F thermal class. The correct grade depends on your machine's rated thermal class and operating temperature.
Yes — phlogopite mica tape with glass fibre backing is the industry-standard insulation for EV traction motor stators. EV motors require high partial discharge inception voltage (PDIV) to withstand inverter voltage spikes, Class H thermal rating for high power density operation, and mechanical robustness against vibration. Phlogopite GMICA tape impregnated by global VPI meets all these requirements. ACC Insulations supplies mica tapes specifically selected for EV motor winding applications.
VPI mica tape contains minimal resin binder and relies on the vacuum pressure impregnation process to fully fill all voids with impregnating resin after wrapping — it is the standard choice where a VPI facility is available and produces the highest-quality, fully void-free ground wall. Resin-rich mica tape contains a higher pre-impregnated resin content sufficient to achieve a fully impregnated ground wall without a separate VPI step — used where VPI capability is unavailable or for repair applications. VPI systems generally produce superior and more consistent electrical performance, but both systems produce IEC-compliant ground wall insulation when correctly processed.
We supply mica tape in standard widths of 19 mm, 25 mm, 30 mm, 38 mm, and 50 mm, with custom widths available using our in-house precision slitting equipment. Standard thickness grades range from 0.10 mm to 0.20 mm depending on the grade and construction (GMICA / PMICA, phlogopite / muscovite, single or double mica layer). Please share your winding machine specifications and motor voltage class with our team for a specific tape recommendation.
All mica tape supplied by ACC Insulations complies with IEC 60371-2 (test methods for mica-based insulation materials) and IEC 60371-3 (specification sheets). Thermal class rating meets IEC 60085. Specific grades also meet IEC 60034-1 requirements for rotating machine insulation systems. Material test certificates and technical data sheets are available with every supply batch on request.
